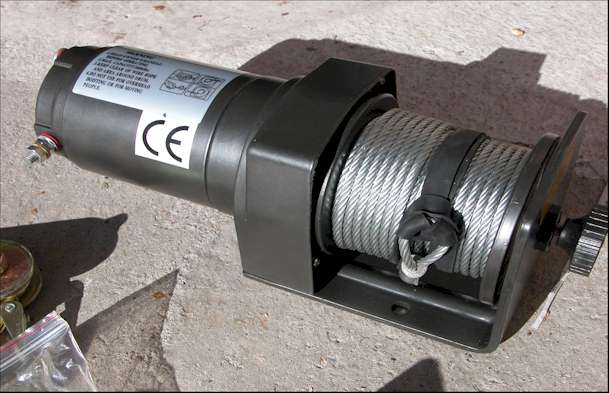

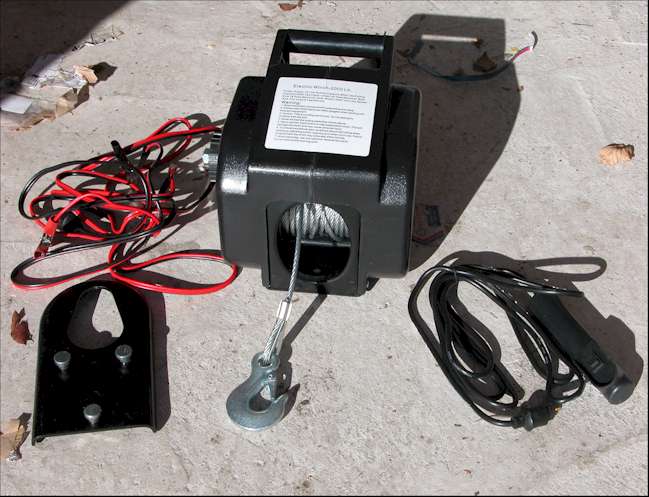

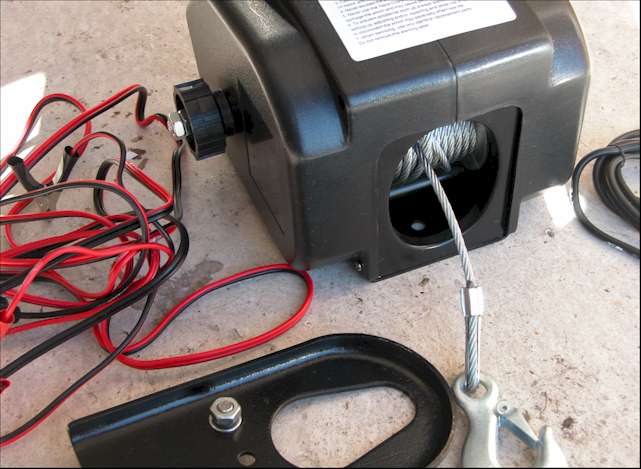

2000lb Electric winch


Capacity 6000lb Rolling, 5000lb Marine, 2000lb pulling
Max boat weight 5000lb
Line speed 6 feet/ minute with load
Cable length 30 foot
Hook size 3/4" opening, 3 3/4" overall
Power supply 12 vdc
Power cord 14' 9"
Switch cord 9' 9"
Mounting plate 8 3/4"x5"
Overall dimensions 9.5"x7.5"x10"
Net weight 18.6lbs


Convenient portable electric winch with power for pulling boats, stuck vehicles and other heavy items. Portable electric winch with built in carrying handle and quick attach mounting bracket.The bracket can be fixed down or it has a cut out that will fit over the top of a standard 50mm tow ball.

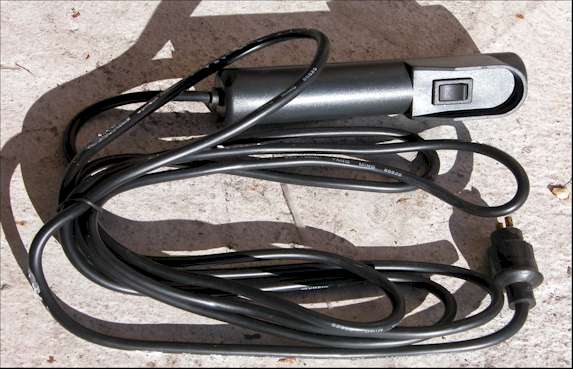

Electric winch is supplied with a power lead terminating with two crocodile clips on one end and a waterproof connector one the other end, this plugs into the electric winch. Another lead is supplied with a waterproof switch on one end, this also plugs into the winch. Also included is a mounting plate and a hand crank for manual/emergency use.

The electric winch has an adjustable clutch (useful when pulling out the cable) and is supplied with a comprehensive instruction/maintenance manual.

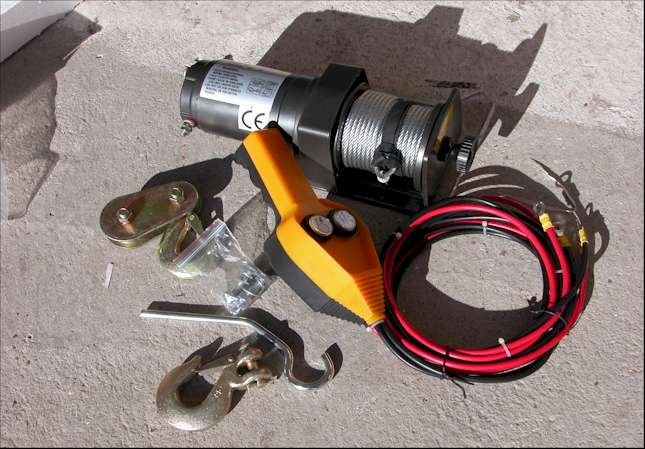

2000lb electric winch


An reversible 12vdc electric winch for permanent installation (eg bolted to vehicle body) includes an additional pulley block.

Rated line pull 2000lbs (906kg)
Gear reduction ratio 153:1
Motor Permanent magnet .85hp output
Overall dimensions 11.2"x4.1"x4.1"
Cable length 49ft
Weight 11lbs



Supplied with a hand held control unit with forward and reverse switches, fixing bolts and a comprehensive instruction manual.

Line pull lbs 0 500 1000 1500 2000
Line speed ft/min 10.5 9.2 7.5 5.9 4.2
motor current 10 25 40 60 90

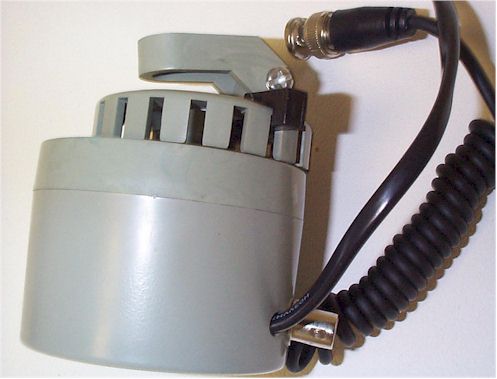

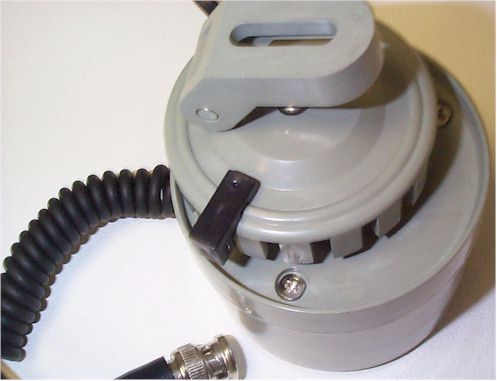

cctv camera scanner

This device is mains operated and designed to be used with a standard CCTV camera causing it to scan. The black clips can be moved to adjust the span angle, the motor reversing when it detects a clip. With the clips removed the scanner will rotate constantly at approx 2.3 rpm. 75x75x80mm.


  • Internal use only
  • Mains operated
  • Approx 2.3 rpm

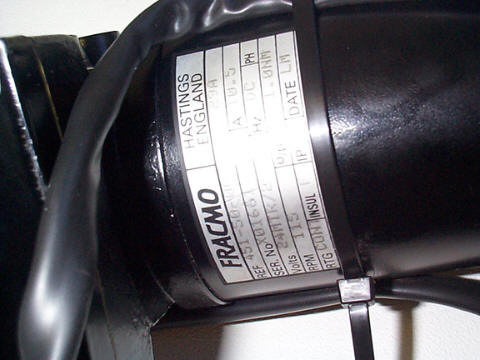

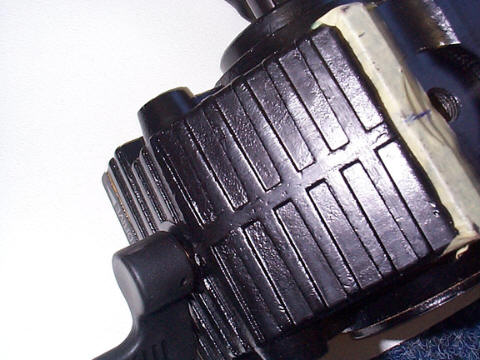

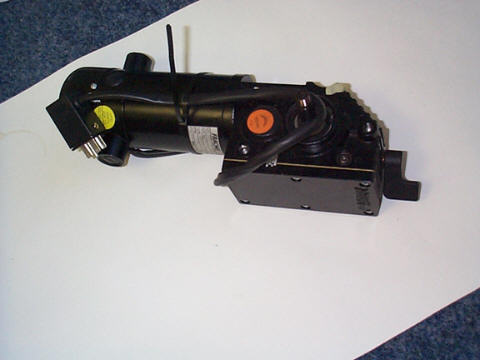

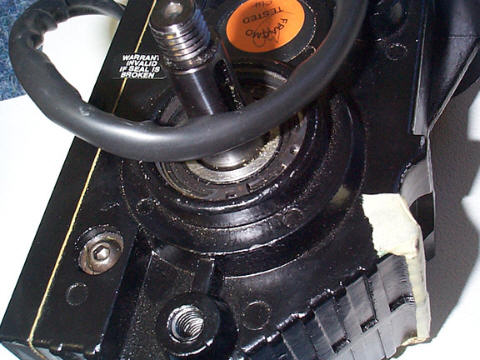

fracmo 24v geared dc motors

  • 24v DC
  • 115 RPM
  • o/p 11NM
  • 10.5A
  • 34cm x 12cm
  • 6.2kg
  • Reversable
  • New
  • Continuously rated
  • Electric brake (24v)



FRACMO part no 451-50-002-G31-29A

A superb DC motor suitable for small electric vehicles, robot wars etc Extremely powerful and good value at £99 uk pounds. Advertised elsewhere at 500usd!

Please note- the pictures shown above relate to a right hand drive motor, we also have left handed ones. A pair of motors are often found on wheelchairs.

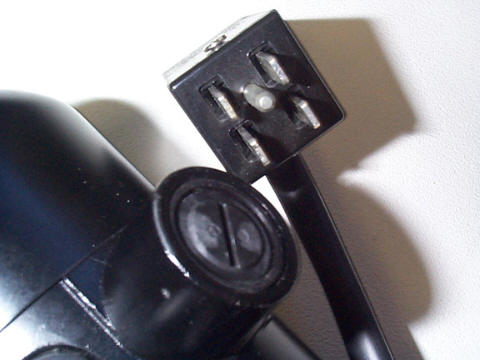

The motors also have electric brakes, 24v required to release the brake on the two thin wires.



We also have some used ones available, they have various faults (eg noisy) but are serviceable and would be ideal for low usage applications or if you wish to refurbish them yourself.. No choice re LH or RH, but they are tested and basically run ok.

And some customer returns at just £19.95

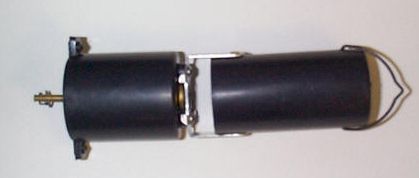

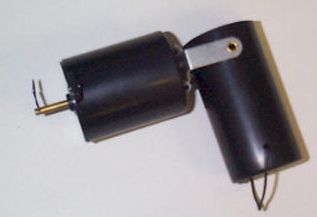

mirror ball motor


slow revving DC motor designed to rotate (and suspend) a mirror ball. Adjustable angle, runs one 1 D cell (not supplied) Motor speed approx 15rpm. Approx 160mm long.

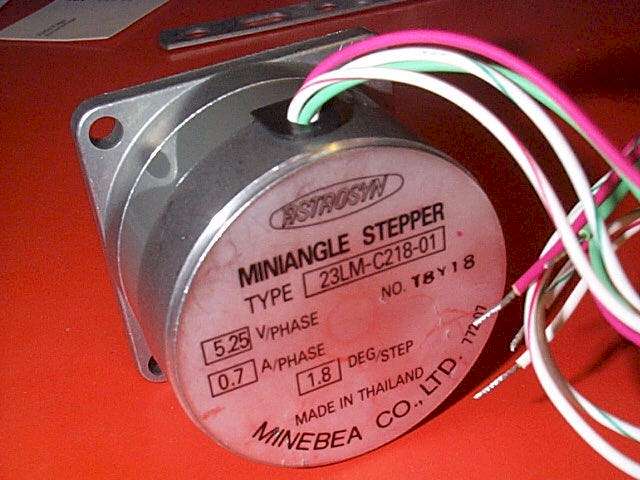

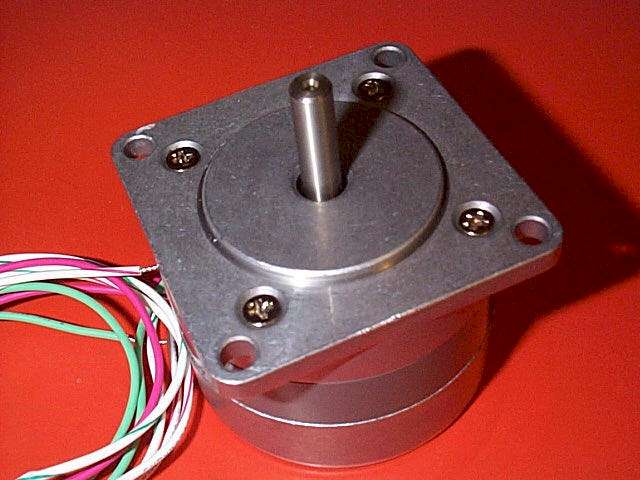

Astrosyn stepper motors 17PM-K103-16V

Brand new stepper motors made by NMB uk, 1.8 deg step, 4 phase hybrid, 31mm fixing centres, fitted witha large cog 40mm diameter (held on with circlip)


Brand new stepper motors, 4mm fixing holes with 47.14mm fixing centres, 20mm shaft, 6.35mm diameter, 5v/phase, 0.7A/phase, 1.8 deg step (200 step) Body 56x36mm.


Solar motors


Small DC low current motors for solar experiments. 32x20mm, runs on 1.5-6vdc.
