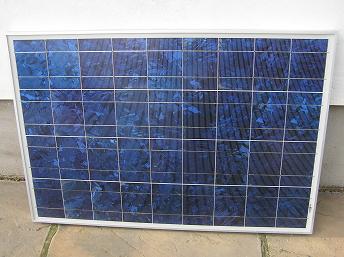

We now stock a small range of solar photovoltaic panels. These are polycrystalline panels made from wafers of silicon laminated between an impact-resistant transparent cover and an EVA rear mounting plate. They are constructed with a lightweight anodised aluminium frame which is predrilled for linking to other frames/roof mounting structure, and contain waterproof electrical terminal box on the rear.



In order to calculate the expected yield from these panels, it is assumed that the UK receives on average (bad days and good days) around 4-5hours peak sun hours during the summer and 1 hour of peak sun hours in the winter. In terms of roof area, 1m2 will generally equate to approximately 140watts of solar PV panel For an array of 1kWp, you would expect to produce around 750kWh of electricity per year, if sited on a suitable south-facing location. Solar yields will vary across the country, and you can expect significantly more solar power from Devon and Cornwall by comparison to Scotland.



Dimensions of panels:

5W panel (polycrystalline) 29cm x 24cm
20W panel (polycrystalline) 54cm x 42cm
60W panel (polycrystalline) 117cm x 54cm



12V SOLAR PANELS AND REGULATORS

   The combination of multi-crystal cells and a high-reliability module structure make this series of ideal solar module. For large-scale power generation hundreds or even thousands of modules can be connected n series to meet the desired electric power requirements. They have a high output, and highly efficient, extremely reliable and designed for ease of maintenance. Separate positive negative junction boxes and dual by-pass diodes are a few examples of some of its outstanding features. Supplied with an 8 metre cable.


Module Specifications(Sealed with toughened glass):
Model
Maximum Power
Pm(W)
Maximum Operating Current Ipm (A)
Maximum Operating Voltage Vpm (V)
Short
Circuit
Current
Isc(A)
Open
Circuit

Voc(V)
Wt
Frame
L x W x D
(mm)
Price
SP9WC 9 0.55 17 0.57 21.6 1.5kg 346x286x25
SP15WC 15 0.83 17 0.88 21.6 2.2kg 436x286x25
416x306x25

SP22WC 22 1.25 17 1.5 20.2 2.8kg 616x286x25
426x416x25

SP60WC 60 3.31 17 4.0 20.7 6.2kg 976x446x38





Photovoltaic Module NE-80E2E


12 VOLT 80 watt solar panel

Multi-Crystalline Silicon Photovoltaic Module with 80W Maximum Power

SHARP’s NE-80E2E photovoltaic module is designed for large electrical power requirements. Based on the technology of crystal silicon solar cells cultivated for over 35 years, this module has superb durability to withstand rigorous operating conditions and is suitable for grid connected systems.

High-power module (80W) using 125mm square multi - crystal silicon solar cells with 12.6% module conversion efficiency.
Photovoltaic module with bypass diode minimises the power drop caused by shade.
Anti reflection coating and BSF (Back Surface Field) structure to improve cell conversion efficiency: 14%.
Using white tempered glass, EVA resin, and a weatherproof film along with an aluminum frame for extended outdoor use.
DC 12V system
Output terminal: Lead wire with waterproof connector

Part No Power Size VOC

volts

ISC

amps

VL

volts

IL

amp

Weight

kg

NE-80E2E 80 1200X530X35 21.3 5.31 17.1 4.67 8.5
ND-L3E6E 123 1499X662X46 21.3 8.12 17.2 7.16 14
NE-L5E2E 125 1499X662X46 32.3 5.46 26 4.8 12.4
NE-Q5E2E 165 1575X826X46 43.1 5.46 34.6 4.77 17.5




Photovoltaic Module ND-L3E6E

Sharp Solar Panels












 12 VOLT 123 watt solar panel

Multi-Crystalline Silicon Photovoltaic Module with 123W Maximum Power

SHARP’s ND-L3E6E photovoltaic module is designed for large electrical power requirements. Based on the technology of crystal silicon solar cells cultivated for over 35 years, this module has superb durability to withstand rigorous operating conditions and is suitable for grid connected systems.

High-power module (123W) using 155mm square multi - crystal silicon solar cells with 12.6% module conversion efficiency.
Photovoltaic module with bypass diode minimises the power drop caused by shade.
Anti reflection coating and BSF (Back Surface Field) structure to improve cell conversion efficiency: 14%.
Using white tempered glass, EVA resin, and a weatherproof film along with an aluminum frame for extended outdoor use.
DC 12V system
Output terminal: Lead wire with waterproof connector

Photovoltaic Module NE-L5E2E



Sharp Solar Panels 24 VOLT 125 watt solar panel

Multi-Crystalline Silicon Photovoltaic Module with 125W Maximum Power

SHARP’s NE-L5E2E photovoltaic module is designed for large electrical power requirements. Based on the technology of crystal silicon solar cells cultivated for over 35 years, this module has superb durability to withstand rigorous operating conditions and is suitable for grid connected systems.

High-power module (125W) using 125mm square multi - crystal silicon solar cells with 13.3% module conversion efficiency.
Photovoltaic module with bypass diode minimises the power drop caused by shade.
Anti reflection coating and BSF (Back Surface Field) structure to improve cell conversion efficiency: 14.7%.
Using white tempered glass, EVA resin, and a weatherproof film along with an aluminum frame for extended outdoor use.
High-voltage output for grid-connected system
Output terminal: Lead wire with waterproof connector

Photovoltaic Module NE-Q5E2E



Sharp Solar Panels 24 VOLT 165 watt solar panel


Multi-Crystalline Silicon Photovoltaic Module with 165W Maximum Power

SHARP’s NE-Q5E2E photovoltaic module is designed for large electrical power requirements. Based on the technology of crystal silicon solar cells cultivated for over 35 years, this module has superb durability to withstand rigorous operating conditions and is suitable for grid connected systems.

High-power module (165W) using 125mm square multi - crystal silicon solar cells with 12.7% module conversion efficiency.
Photovoltaic module with bypass diode minimizes the power drop caused by shade.
Anti reflection coating and BSF (Back Surface Field) structure to improve cell conversion efficiency: 16.4%.
Using white tempered glass, EVA resin, and a weatherproof film along with an aluminum frame for extended outdoor use.
DC 24V system and high-voltage output for grid-connected system
Output terminal: Lead wire with waterproof connector





Solar regulators 12v, up to 135 watts peak

We offer two solar regulators to use with the above panels, both offer overcharging and inverse current protection.


Solar regulator 12v, up to 60 watts peak for lead acid batteries


Solar regulator 12v, up to 135 watts peak for lead acid or gel type batteries



Solarex's "Lite" modules are a lightweight yet rugged range of photovoltaic panels designed to be slimline so that they are simple to install on flat surfaces and are semi-flexible to allow for a gentle curvature of a coach roof as on caravans and boats.
Semi-crystalline silicon solar cells
Tough non-slip tedlar front cover
Stainless steel sub-strate
Moisture resistant metallization ensures electrical integrity in severe climates
Supplied with 3m of cable from potted junction box
Module is only 3mm thick, 10mm including junction box
Supplied as 12v units, can be linked for 2
Typical applications are camping and caravanning, boating, mobile communications, low power telemetry and telecommunication uses, railroad signalling devices, etc.
MODULE TYPE:

CURRENT
RATING:
PEAK
POWER:
PEAK
VOLTAGE:
DIMENSIONS (mm)
WEIGHT (KG)
MSX30L
30W
1.75A
17.1V
620*500*15
3.0
MSX20L
20W
1.17A
17.1V
450*500*15 2.1
MSX10L
10W
1.58A
17.1V
450*270*15 1.1
MSX5L
4.5W :
1.27A  16.8V   270*270*15 0.7



Solarex Lite modules carry a one year product warranty and a 5 year performance warranty. Like the Mega series all modules carry an individual label of the product's test results.

Voltage Controllers
A variety of solar charge controllers are available in 12v and 24v and the controller rating should be selected according to the peak power rating of the solar array. Marlec manufacture a range of controllers designed for combining wind and solar systems. See information on RWS type controllers

three watt 12" square solar panel

NEW BARGAIN LOW PRICES

These amorphous silicon solar panels are 12" square and have a Kevlar back panel. Each solar panel has two copper strips down the edge which you can solder directly to. Output is 13.8v (12v) 3 watts. You will need to seal the edges if the solar panel will get wet.

Available in 1's or as a special offer pack of 4.

ENERGY BANK KITS

Ideal for large solar power requirements.

Energy bank kit 1 consists of twenty 12" square 3w 12v solar panels with kevlar backs. Connection is by soldering to two copper strips on each panel. Also supplied are 20 diodes to be wired in series, one with each panel. Total power 60 watts

Energy bank kit 1 consists of one hundred 12" square 3w 12v solar panels with kevlar backs. Connection is by soldering to two copper strips on each panel. Also supplied are 100 diodes to be wired in series, one with each panel. Total power 300 watts



Energy bank kit 3 consists of two hundred and fifty 12" square 3w 12v solar panels with kevlar backs. Connection is by soldering to two copper strips on each panel. Also supplied are 250 diodes to be wired in series, one with each panel. Total power 750  watts

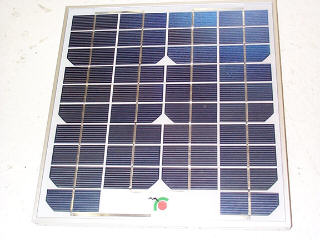

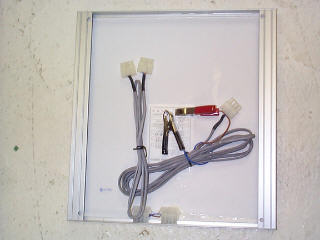

our new 12v solar panel




10 watt silicon solar panel, at least 10 year life, 365x26mm, waterproof, ideal for fixing to caravan roofs, boat, motorhomes etc. Very nicely made unit with hidden fixing holes for secure fitting. Complete with leads and connectors. Aodized aluminium frame.

Each panel is supplied with two leads, one lead is used for the output and is 3m long with two large crocodile clips, the other lead is used to connect extra panels if required.

Note: These panels do NOT require a blocking diode, they can be left connected at all times without discharging the battery.



Size 346 x 365 x 26mm
Output 14v
Output off load 20v
Power 10w
Weight 1.8kg





Special offer 1 panel and 1 regulator save £10

4 panels and 1 regulator save £20

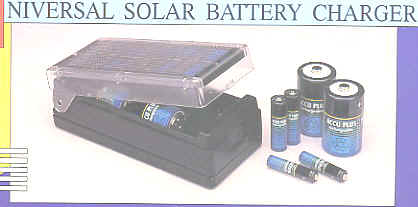

New Universal Solar charger will charge 2 batteries at once

TYPE

MA/HOUR

SUNLIGHT HOURS

AAA 180mA x 2 1-2
AA 500mA x2 3-4
C 1000mA x 2 6-8
D 1500mA x 2 9-12



Large built in solar panel approx 6" x2" provides enough power to recharge nicad batteries.

Hinged lid and adjustable foot.

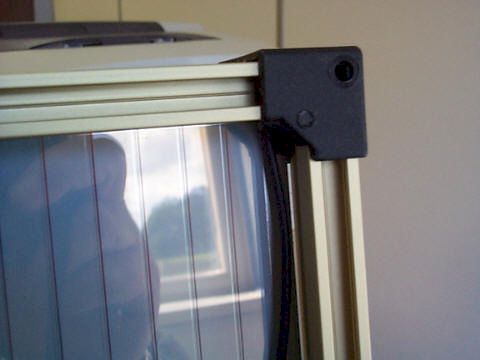

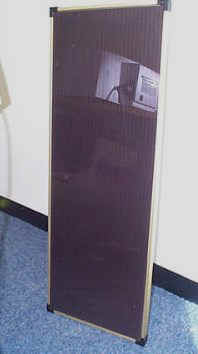

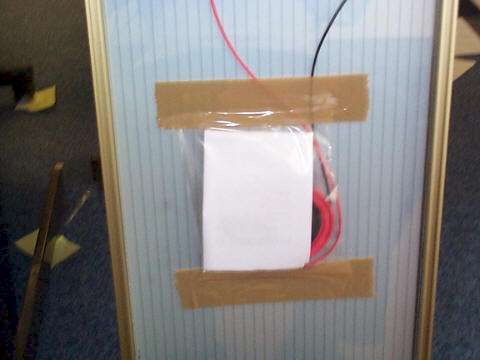

14 WATT SOLAR PANEL

DCP00881.jpg (6403 bytes)DCP00882.jpg (18488 bytes)DCP00883.jpg (16690 bytes) click to expand images

Ø      New Robust Design

Simple to wire on site

Ø      Improved Power

Stabilised power over 45Wp/m2

Ø      Corrosion -Resistant

All-round edge isolation inhibits moisture ingress

Ø      Cost-Effective

Lower cost per Watt at all stages of distribution

Ø      Attractive Appearance

Enhances customer appeal





Amorphous silicon solarpanel fitted in a anodised aluminium panel. Panel measures 3' by 1' with 3 metre flyleads. One of these panels will run our solar water pump in full sunlight 14 watts approx 13.8v output.


3 foot solar panels eight  watt pack of four

Just in are these 3' by 1' 12v Solar panels with a minimum output of 8  watts.. Made from Amorphous silicon they are suitable for outside use providing the edges and the back of the panel are watertight. Due to us having to have packing cases made the panels are only available in quantities of 4 unless you are happy to collect from our shop where you can have any quantity you like.

The panels are the same modules as the ones above but are not framed and are slightly lower output.

To connect to the panels use either cold solder paste, low temperature solder, glue gun or some type of mechanical clip.




three watt 12" square solar panel

These amorphous silicon solar panels are 12" square and have a Kevlar back panel. Each solar panel has two copper strips down the edge which you can solder directly to. Output is 13.8v (12v) 3 watts. You will need to seal the edges if the solar panel will get wet.


Solar pump


Perfect for many 12v DC uses, ranging from solar fountains to hydroponics!

Small and compact yet powerful. Will work direct from our 14 watt solar panel in direct sunlight. Max head:l7 ft Max flow rate : 8 1pm Current :1 .5A


Alternative energy CD rom

Renewable energy CD rom, reports, articles, magazine reprints, photovoltaics, wind, hydro,EV's,biofuels,heatpumps, geothermal, energy conservation, wind, water etc. Hundreds of articles, plans, illustrations etc. Excellent value


3 foot solar panels

Just in are these 3' by 1' 12v Solar panels with a maximum output of between 5-9 watts.The spec varies from one panel to another so some will give 5 watts others 9 watts. Made from Amorphous silicon they are suitable for outside use providing the edges and the back of the panel are watertight. Due to us having to have packing cases made the panels are only available in quantities of 4 unless you are happy to collect from our shop where you can have any quantity you like.




Solar panel experimenters kits ( proper ones!)

400mA solar panel (plastic) low inertia DC motor, lead, fan, turntable discs, instruction booklet.


Advanced solar energy kit

Contains 8 solar panels plus connecting strips, motor etc. Ideal for experiments with current/voltage series parallel wiring etc.


Solar modules

Encapsulated solar panels with an output of .45v. Three sizes available with different current outputs.


SOLAR POWERED WIND UP RADIOS


This radio has a built in hand operated battery charger, built in rechargeable batteries and  and a built in solar panel so it should always work!


solar/wind regulator

Regulators protect batteries from overcharging. On reaching capacity the regulator diverts excess power into heat thus preventing battery or equipment damage. Maximum power is 60 watt.


High power dc to dc modules

suitable for wind/solar generators

DRM58 input voltage 10-40vdc, output voltage 5v at 8A.

DRM128 input voltage 17-40vdc, output voltage 12v at 8A.

DRM158 input voltage 20-40vdc, output voltage15v at 8A.

DRM248 input voltage 29-40vdc, output voltage 24v at 8A.

DRS123 input voltage 17-40vdc output voltage 12v at 3A.

DRS153 input voltage 20-40vdc, output voltage 15v at 3A.

DRS243 input voltage 29-40vdc output voltage 24v at 3A.


Click image to enlarge

SOLAR NICAD BATTERY CHARGERS

The perfect way to keep your personal stereo batteries charged up

Just put in your rechargeable batteries and leave in the sun! Two types available

4 x AA size

2 x C size


Differential thermostat kit

If you are building your own solar system you could use one of our kits for controlling it. The kit contains to sensors, one you place on the solar panel, the other on the tank. When there is a temperature difference between the sensors (this is adjustable on the pcb) a relay operates. This could turn a pump on until the temperatures were back below the pre-set temperature difference.


Solar water heating plans

Everything you need to know including how to construct efficient solar panels.


Solar energy plans

Information pack on DIY photovoltaic systems for vehicles and homes


Solar cooker plans

Did you know you can cook with the sun? send off for our solar cooker plans and find out how to cook your meals, bake bread etc for free!


Solar motors

Small DC low current motors for solar experiments. 32x20mm, runs on 1.5-6vdc.

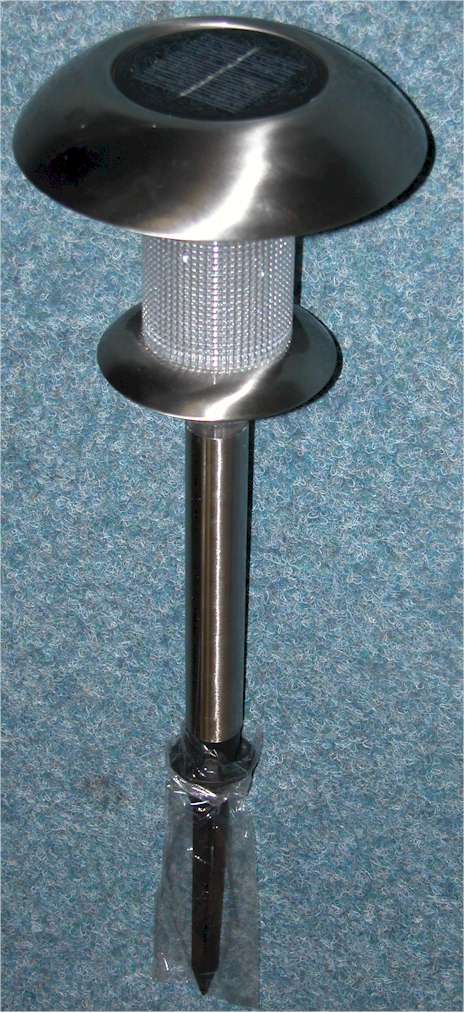

Solar garden lighting





A set of three garden solar lights with super bright white LED lighting. The supplied rechargeable battery is a standard AA size. There is a daylight detector that turns the LED on when it gets dark and off in the morning. Run for approx 6 hours when fully charged. The lamps are made of plastic. approx 1' high, 5" diameter.

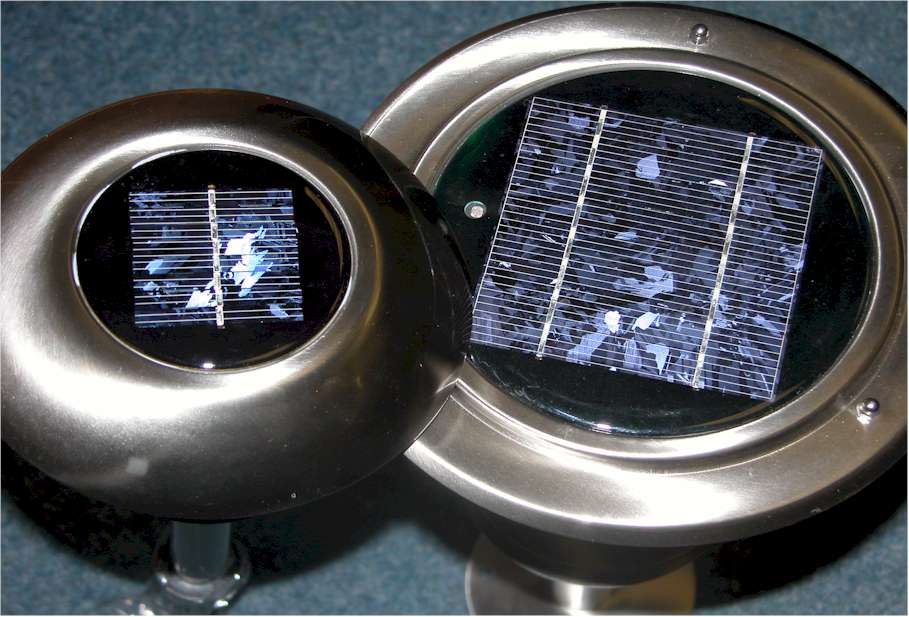

High quality stainless steel solar garden lights. These solar lights have 2 bright white LED's, 2 batteries and a much larger solar surface area (double the size) They also feature an on/off switch 17cm diameter, 30cm tall. Finished in good quality stainless steel they are quite attractive

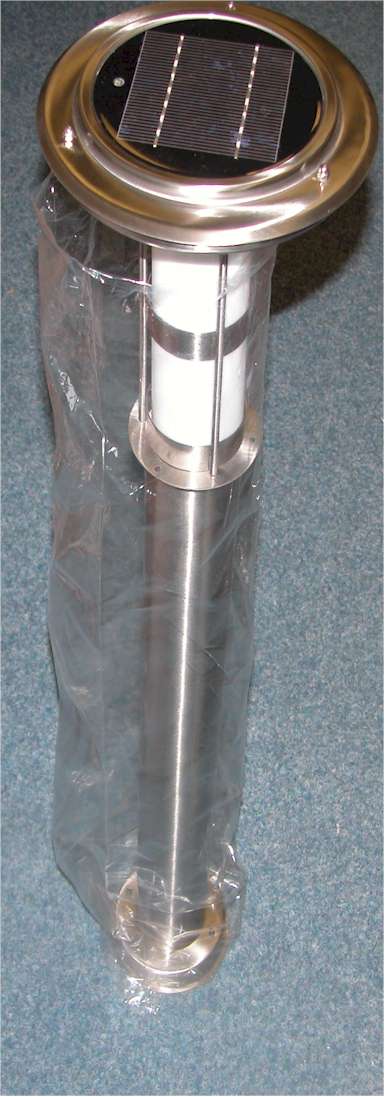

To complement the garden lights we have some solar post lights, these are designed to be bolted down to a patio, wall or post. Supplied with 3 coach bolts for secure fitting. Very large solar panel ensures excellent performance combined with good looks. 50cm high, 22cm diameter. Again with on/off switch and daylight sensor. We also stock a taller version, 85cm high.

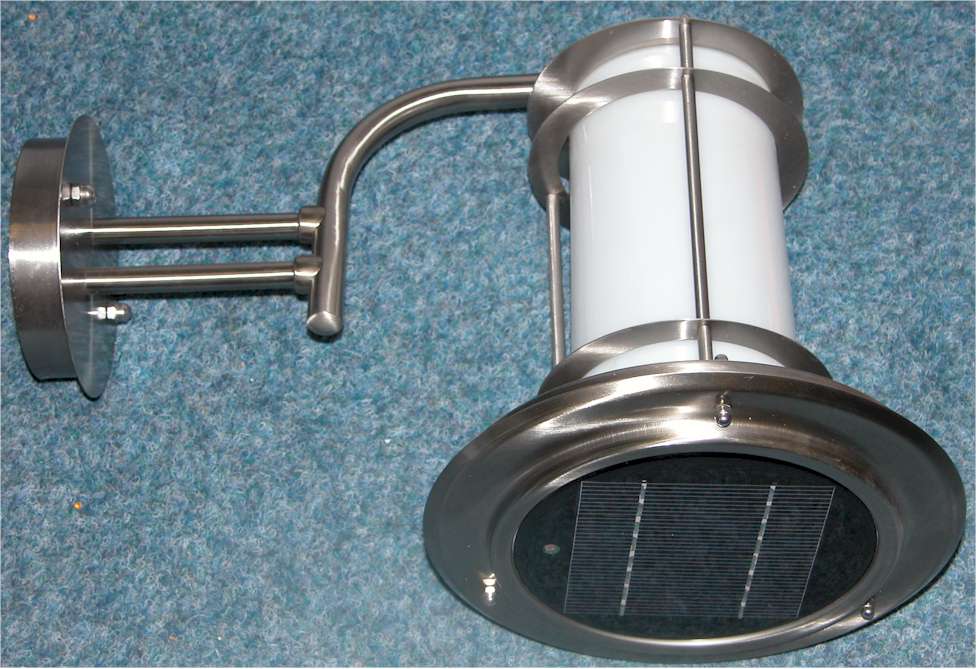

Also some wall mounted lights, same design as the solar post lights, 22cm diameter, protrude from the wall 40cm and are 30cm high.



                                             Care             Sunnycott caravan park Isle of wight

WIRELESS  CCTV CAMERAS INNOVATIONS  STORE WIRELESS  CCTV CAMERAS INKJET CARTRIDGES WIRELESS  CCTV CAMERAS INNOVATIONS  STORE AIR RIFLES AND BB GUNS VELOSOLEX    CROSSBOWS MAMOD STEAM ENGINES COP CCTV   VITAMINS  SOFTWARE TONER CARTRIDGES WATCHES PUMPS RADAR DETECTORS HOMECCTV GAMO GUNS    NIGHT VISION  MAGIC AND GAMES HERBAL HIGHS BULL ELECTRICAL FLYBIRD OPTICAL BIKES & SCOOTERS OPTICAL STORE   HYDROPONICS STORE SOFTWARE STORE   VACUUM STORE   AUCTION SITE   PREMIUM BONDS   HOLIDAY HOMES  PMR RADIOS SPY SHOP   STICKY LABELS  TINPLATE TOYS SPANISH GOLF VILLA    MARC JAMES SHEDS SUNNYCOTT SEEDS STIRLING ENGINES BULLGROUP LOCKPICKS PAINT GUNS GAMO WILESCO STEAM  CENTURY LIGHTING VIKING EBIKES  FAG PACK VIKING BIKES BIRI  BEEDIES BIDI 121VILLAS YELLOWMAPS HERBAL KICK  SPAIN FORUM  SPAIN-FORUM  FORUM SPAIN FRANCE FORUM  FORUM FRANCE FRANCE FORUM BLUE SEAL 13A NUTRITION HOLSWAP WEBCAM A1GUNS SOLAR BULLMALL FISHPASTE OPTICS FLOWMISER GISSOWATT  MAGNOFUEL PAYMENT PAGE LOCKPICKS PCCORNER PRIZEFINDER  PINKJETS RADARGUN RADARGUNS RAGABONE STICKYLABELS TIN PLATE TOYS SEEMANS SEEMENS SCRATCHINGS SICCE SIEMEN SIEMENSSOLAR SLIPS VERONICA-KITS WEB-CAMERA TOYPEN URLSALES SUNNYCOTT EASY-SALES-PRO ALLWINDS BULLMALL FAGPACK A1SOLAR SEEMENS ETILTD
