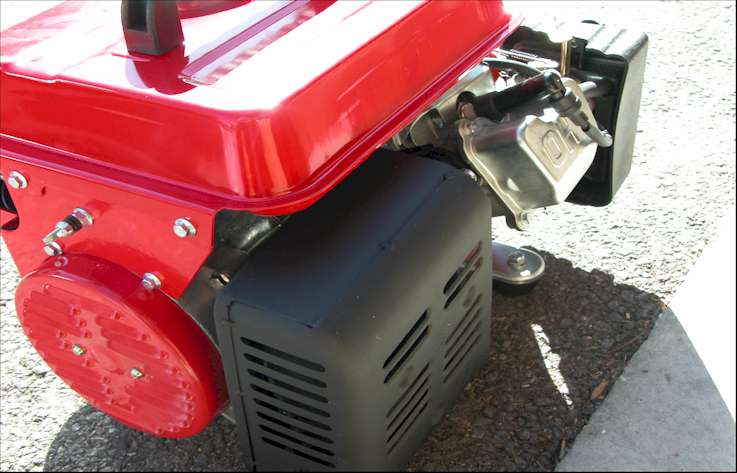

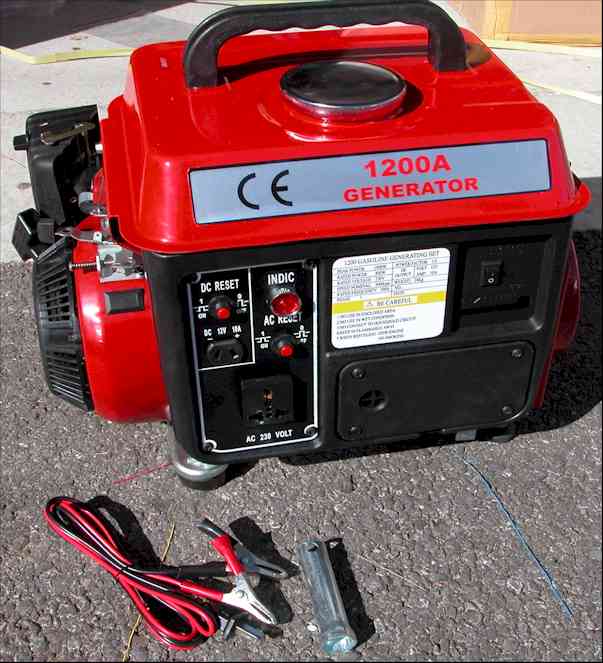

1000 WATT FOUR STROKE PETROL GENERATORS

General purpose high output petrol generator, pull start 5L fuel capacity, 4
stroke. Supplied with plug tool and user manual.
This generator is supplied dry, ie no engine oil in it. Make sure that you
fill it with oil and also earth the generator to the ground with a minimum lead
diameter of .12mm (10A)
| Length |
430mm |
| Width |
345mm |
| Height |
315mm |
| Dry weight |
24kg |
| Gen type |
single phase brushless |
| Peak power |
1.0 kw |
| Rated output |
.85kw |
| AC voltage |
240 |
| AC current |
3.5A |
| Rated frequency |
50 hz |
| Power factor COS |
1.0 |
| DC rated voltage |
12v |
| DC rated current |
10A |
| Engine |
single cyl, 4 stroke, air cooled |
| Bore x stroke |
52x38 |
| Displacement |
81 |
| Compression ratio |
7.7:1 |
| Max output (Kw/rpm |
1.7/4000 |
| Oil capacity |
0.37L |
| Fuel capacity |
4.2L |
| Starting |
manual |
| Ignition |
T.C.I |
|
