1
WATT FM TRANSMITTER
PROFESSIONAL RANGE
Continuous Reliable
Power...... |
 |

Our new range of PLL Stereo Transmitters integrate the Veronica Crystal
Coder, PLL Drive and Power Amp to give you everything you need, all in
one enclosure. This neat combination is suitable for Licensed FM Stereo
Broadcasting in the UK and most other countries of the world.
Any frequency between 87.5 to 108MHz can be accurately programmed on the
internal dip switches and tuned up to meet the Radio Authority spec in
less than 5 mins.
Expensive test equipment is NOT required, set up is a simple task using
the LED's on the front panel. The transmitter operates from a 13.8V DC
supply, this makes it suitable for use on a standard power pack or
automobile power system anywhere around the world.
On delivery the equipment is ready to plug in and use with any suitable
50 ohm antenna system. This transmitter along with all our other
products comes with a full twelve month guarantee and our reputation of
high reliability.
|
Frequency
RF Power Output
Spurious Emissions
Frequency Stability
SWR Ruggedness
RF Output Connector
Audio Input Sensitivity
Signal To Noise Ratio
Frequency Response
Pilot Tone Frequency
Stereo Crosstalk
Pre-emphasis
Audio Distortion
Audio Input Connectors
Power Input
Physical Dimensions
|
(88-108MHz) Specify on ordering
Typ 900mW into 50 Ohm load
Better than -40 dB ref to carrier
PLL Typ +/-0.5KHz
Withstands 10:1 mismatch
SO239
0.775 V rms for +/- 75 KHz
70 dBu
Flat from 20 Hz to 15 KHz
19.000 KHz (Crystal Ref)
35 dB
(50uS/ 75uS/ None) Specify on ordering
Better than 0.2 % THD
Phono/ RCA type unbalanced sockets
13.8V DC Regulated 500mA
279 x 190 x 89 mm
|
12W

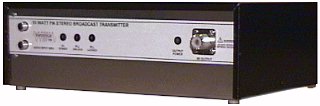

VARIABLE POWER FM TRANSMITTER
PROFESSIONAL RANGE
Continuous Reliable
Power...... |
|
The new 12W PLL Stereo Transmitter from Veronica incorporates the
crystal stereo coder (Version 3), the Easy-Tune™ PLL3 drive and a
highly stable No-Tune™ variable linear power amp. This model is a
lower power version of the popular Veronica 30W PLL transmitter. Ideal
for licensed FM Stereo Broadcasting in the UK and most other countries
of the world. A transmission
range of up to 9 miles is possible when using this transmitter with
an high gain antenna.
By adjusting a small pre-set control inside the unit the RF power output
level can be set anywhere from 1W to 12W. Any frequency between 87.5 to
108 MHz can be accurately programmed on the internal dip switches and
easily locked up to meet the Radio Authority spec in less than 5 mins.
Pre-emphasis time constants of 50uS, 75uS (USA) or none are easy to
select on the Internal jumpers.
Setting up is a simple task using the LED's on the front panel and
expensive test equipment is NOT required. The mains version of this
transmitter operates on any AC supply from 100V to 240V and can also
operate on 13.8V DC, this makes it truly plug and play and suitable for
use anywhere in the world on virtually any power source. Alternatively a
lower cost 13.8V DC only model is available.
This transmitter along with all our other products comes with a full
twelve month guarantee and our reputation of high reliability. On
delivery the equipment is ready to plug in and use with any suitable 50
ohm antenna system such as our Vertical
5/8 Wave, Single
Dipole or Stacked
Dipole.
|
Frequency
RF Power Output
Spurious Emissions
Frequency Stability
SWR Ruggedness
RF Output Connector
Audio Input Sensitivity
Signal To Noise Ratio
Frequency Response
Pilot Tone Frequency
Stereo Crosstalk
Pre-emphasis
Audio Distortion
Audio Input Connectors
Power Input
Physical Dimensions
|
User adjustable from 87.5 to 108 MHz
User adjustable from 1 to 12W into 50 Ohm load
Better than -50 dB ref to carrier
PLL Typ +/-0.5KHz
Withstands 10:1 mismatch
SO239 (or N-type on request)
0.775 V rms for +/- 75 KHz
75 dBu
Flat from 20 Hz to 15 KHz
19.000 KHz (Crystal Ref)
35 dB
User adjustable 50uS, 75uS or None
Better than 0.2 % THD
Phono/ RCA type unbalanced sockets
100-240V AC 50/60Hz or 13.8V DC Regulated 2.5A
279 x 190 x 89 mm
|
13.8v versions

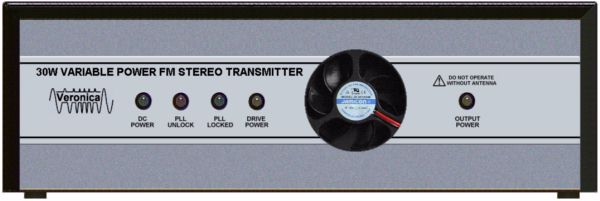

30W
VARIABLE POWER FM TRANSMITTER
PROFESSIONAL RANGE
Continuous Reliable
Power...... |
|
Our latest 30W PLL Stereo Transmitter incorporates the Veronica crystal
stereo coder (Version 3), the Easy-Tune™ PLL drive and the highly
stable No-Tune™ variable linear power amp. This neat combination is
suitable for Licensed FM Stereo Broadcasting in the UK and most other
countries of the world. The transmission
range of this transmitter used with an high gain antenna could be up
to 15 miles.
Any frequency between 87.5 to 108 MHz can be accurately programmed on
the internal dip switches and locked up to meet the Radio Authority spec
in less than 5 mins. By adjusting a small pre-set control inside the
unit the RF power output level can be set anywhere from 1W to 30W.
Internal jumpers allow the audio pre-emphasis to be easily selected to
the correct time constant of 50uS, 75uS (USA) or none.
Expensive test equipment is NOT required, set up is a simple task using
the LED's on the front panel. The transmitter operates on any AC supply
from 100V to 240V or 13.8V DC, this makes it truly plug and play and
suitable for use anywhere in the world.
On delivery the equipment is ready to plug in and use with any suitable
50 ohm antenna system such as our Vertical
5/8 Wave, Single
Dipole or Stacked
Dipole. This transmitter along with all our other products comes
with a full twelve month guarantee and our reputation of high
reliability.
|
Frequency
RF Power Output
Spurious Emissions
Frequency Stability
SWR Ruggedness
RF Output Connector
Audio Input Sensitivity
Signal To Noise Ratio
Frequency Response
Pilot Tone Frequency
Stereo Crosstalk
Pre-emphasis
Audio Distortion
Audio Input Connectors
Power Input
Physical Dimensions
|
User adjustable from 87.5 to 108 MHz
User adjustable from 1 to 30W into 50 Ohm load
Better than -50 dB ref to carrier
PLL Typ +/-0.5KHz
Withstands 10:1 mismatch
SO239 (or N-type on request)
0.775 V rms for +/- 75 KHz
75 dBu
Flat from 20 Hz to 15 KHz
19.000 KHz (Crystal Ref)
35 dB
User adjustable 50uS, 75uS or None
Better than 0.2 % THD
Phono/ RCA type unbalanced sockets
100-240V AC 50/60Hz or 13.8V DC Regulated 4.5A Continuous
279 x 190 x 89 mm
|
13.8v Mono and Stereo
11-240vac Mono and Stereo
30WPLLSB
RFS29
300mW FM TRANSMITTER
PROFESSIONAL RANGE
Continuous Reliable
Power...... |
|
|
This neat package, which includes a
single tuned dipole antenna, is suitable for Licensed RFS 29
broadcasting in New Zealand.
Any frequency between 88.0 to 88.5MHz can be accurately programmed on
the internal dip switches and tuned up to meet the RFS29 spec in less
than 5 mins.
Expensive test equipment is NOT required, set up is a simple task using
the LED's on the front panel. The transmitter operates from the 220 Volt
AC or 13.8V DC supply, this makes it suitable for use on NZ mains or an
automobile power system.
|
|
|
spacer
|

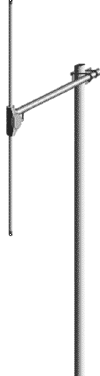

On delivery the package is ready to plug
in and use and comes complete with a 50 ohm single tuned dipole antenna.
The dipole has a built-in transformer to match the 72 ohm balanced
terminal impedance to 50 ohm unbalanced (balun) feeder cable. This will
provide an SWR of 1.5 or less and the correct termination to the
transmitter.
The package INCLUDES 10m of RG58 feeder
coax cable with a PL259 plug fitted and a mounting clamp, this allows
the dipole system to be plugged straight into a transmitter without the
need for any additional connectors or soldering.
Normally
the dipole system clamps in a vertical position as high off the ground
as possible to a mounting pole (1" to 2" Dia) which you need
to provide yourself. This dipole has 0dB gain, so when used in
conjunction with the supplied PLL transmitter, e.i.r.p. cannot exceed
the regulation 300mW.
This transmitter along with all our
other products comes with a full twelve month guarantee and our
reputation of high reliability.
|
|
|
|
Frequency
RF Power Output
Spurious Emissions
Frequency Stability
SWR Ruggedness
RF Output Connector
Audio Input Sensitivity
Signal To Noise Ratio
Frequency Response
Pilot Tone Frequency
Stereo Crosstalk
Pre-emphasis
Audio Distortion
Audio Input Connectors
Power Input
Physical Dimensions
|
88.0-88.5MHz
in 100KHz steps.
MAX 300mW e.i.r.p. (when used with supplied dipole)
Better than -55 dBW e.i.r.p. (when used with supplied dipole)
PLL Typ +/-0.5KHz
Withstands 10:1 mismatch
SO239
0.775 V rms for +/- 75 KHz
70 dBu
Flat from 20 Hz to 15 KHz
19.000 KHz (Crystal Ref)
35 dB
50uS/None
Better than 0.2 % THD
Phono/ RCA type unbalanced sockets
220V AC Mains / 13.8V DC Regulated 1A
279 x 190 x 89 mm |
AUDIO
COMPRESSOR LIMITER
PROFESSIONAL RANGE
Continuous Reliable
Power...... |
|
STEREO AND MONO AUDIO
LIMITER COMPRESSORS
The audio level in any sound broadcasting system must be controlled to
prevent over modulation. The current trend is for broadcast stations to
transmit a constant level of audio optimised to 100%. The Veronica
Limiter Compressor is specifically designed to achieve constant 100%
modulation without any over modulation using an FM broadcasting
transmitter. The result is a professional sound on your station output
with all music and speech inputs. This unit is fully enclosed in
aluminum and steel casing measuring 279 x 190 x 89 mm
|
| • |
Peak Limiting
with AGC Action |
• |
Better than 1 mS
Attack Time |
| • |
Very Low Noise (-75 dBu S/N Ratio) |
• |
Very Low Distortion (0.2% at limiting) |
| • |
30Hz-15KHz Frequency Response |
• |
50uS Pre-emphasis (75uS USA) |
| • |
Standard 0dBu 775 mV rms Output |
• |
3 LED's indicate Compression Level |
| • |
Single Supply Operation 11-16V DC |
• |
Audio Inputs up to +24dBu 12Vrms |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
mono versions
stereo versions
REGULATED
POWER SUPPLIES
PROFESSIONAL RANGE
Continuous Reliable
Power...... |
|
220-240VAC/12V 300ma REGULATED POWER SUPPLY
Small adapter type power supply with switchable output from 3 to 12V.
Ideal for use with transmitter kits up to 1W. (Not recommended for 1W
PLL or 5W kits)
PRICE (only suitable for use in the UK)
|
100-240VAC 50-60Hz/13.8V 2.5A REGULATED SWITCH MODE
POWER SUPPLY
Suitable for use with any of the kits and transmitters up to 5W. This
power supply automatically adjusts itself to operate on any AC mains
power system in the world. Features include short circuit, overload and
over voltage protection. The power supply is immune from RF and
constructed in a insulated enclosure to meet all international safety
standards.
|
100-240VAC 50-60Hz/13.8v 4.4A REGULATED switched
mode POWER SUPPLY
Suitable for use with many of the kits and transmitters. This power
supply automatically adjusts itself to operate on any AC mains power
system in the world. Features include short circuit, overload and over
voltage protection. The power supply is immune from RF and constructed
in a insulated enclosure to meet all international safety standards.
100-240VAC 50-60Hz /13.8V 8A REGULATED
SWITCHED MODE POWER SUPPLY
Suitable for use with many of the kits and transmitters. This power
supply automatically adjusts itself to operate on any AC mains power
system in the world. Features include short circuit, overload and over
voltage protection. The power supply is immune from RF and constructed
in a insulated enclosure to meet all international safety standards.
|
100-240VAC 50-60Hz /13.8V 16A REGULATED
SWITCHED MODE POWER SUPPLY
Suitable for use with m any of the kits and transmitters. This power
supply automatically adjusts itself to operate on any AC mains power
system in the world. Features include short circuit, overload and over
voltage protection. The power supply is immune from RF and constructed
in a insulated enclosure to meet all international safety standards.
|
FM
TRANSMITTER POWER
AND RANGE
TECHNICAL INFORMATION
Continuous Reliable Service...... |
|
In theory the range of a transmitted
radio signal is infinite regardless of power used, basically it goes on
and on forever until it encounters an obstruction. More power helps to
penetrate any obstructions. Given this, when engineering and planning a
station it is always better to consider the issues that limit the range.
Range is limited by:
a) How far the transmitting antenna can effectively see. If you stand
where the antenna is mounted and look out with a pair of binoculars,
wherever you can see it is possible to transmit to. This can sometimes
be up to 20, 30 even 40 miles if you are looking out from a mountain
top.
b) Other sources of interference or other stations operating on the same
frequency. For example the antenna may be able to see 20 miles, but if
another station is on the same frequency 20 miles away, it will
block/interfere with the signal.
c) Transmission power. If the antenna can see 20 miles, but say 1 Watt
ERP of power used, it's very likely that about 1 mile of range will
result. This is quite simply because there is not enough power to
propagate the signal 20 miles. If 50 Watt ERP is used, it's very likely
that 20 miles of range will be achieved. This is because 50 Watt ERP is
ample power to propagate a strong signal 20 miles. If 1 Million Watts of
power is used, it is very likely that signal will only propagate just
over 20 miles. This because the range is limited as described in point
a) above.
Assuming the antenna has a clear view, the frequency is clear and an
average quality portable receiver is used, typical transmission power
ver range figures are as follows:
Watts
ERP
1
2
4
8
16
32
64
128
256
512
|
Range
Miles
1.5
2.1
3.0
4.2
6.0
8.6
12.0
17.0
24.0
34.0
|
|
|
| |
|
