4 channel DVR system  A professional 4 channel DVR system for small to medium sized office use	This system supports dual mobile racks for more convenient replacement and reservation. The DVR can be programmed to zoom images in full screen while sensor detecting motion. It can also be programmed to select rotation display in full screen for real time watching.
	• Programmable recording schedule for continuous, manual or event driven recording. • Can be connected to any TV, no special monitor required. • Advanced image compression technology, 40GB hard drive giving up to two months recording time. • Supports dual hard disks. Selectable overwriting when full. • OSD ( On Screen Display) menu for easy operation. • Complete 4 channel stand alone DVR- no PC required. • Real-time watching and digital recording from up to 4 cameras simultaneously.	Display frame: PAL  100fps, 4 x 25fps   High 20KB     Low 12KB     Security password protected     Recording frame: PAL max 25fps(quad mode),max 6.25fps(each mode)     power source 100VAC to 240VAC     Compression format (each mode) Modified MJPEG

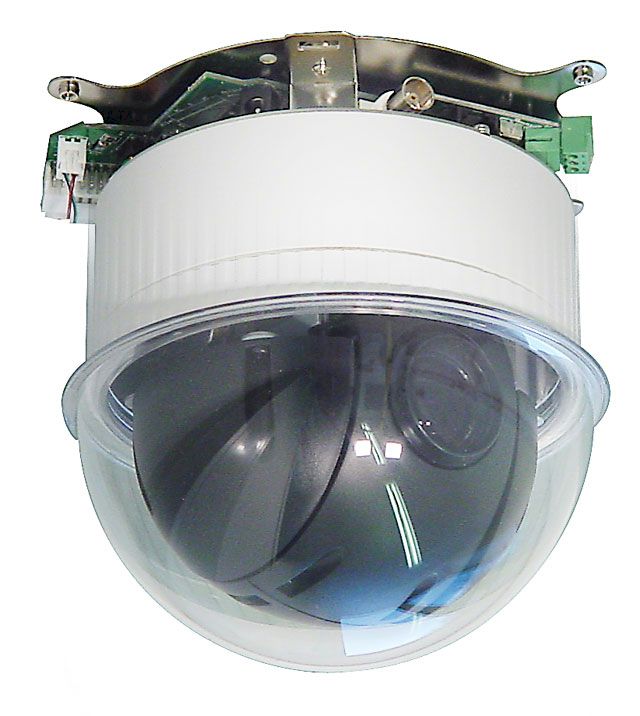

	Protex motorized pan/tilt colour dome camera  A sophisticated motorized dome camera with remote pan and tilt control	This camera provides is exellent work horse pan and tilt camera suitable for use in single or multi-camera installations.
	• Camera allows full Pan and Tilt remote control • High quality 460 TV line CCD • Extremely quite operation • Easy mounting • Suitable for use with PCD50C controller	Minimum Illumination  2 Lux / F2.0   Storage Temperature -30 - +80 C     Backlight Compensation Yes     Lens (F2.0) Standard 3.6mm     Dimensions 168 O x 142 mm     Power Requirements DC 12V     Weight 820g     Power Consumption 300mA Typical     Operating Temperature -10 - +50 C     Horizontal Resolution 460 TV Lines     Video S/N ratio 46dB (AGC OFF)     Synchronising System Internal     Electronic Shutter Control Auto-Shutter (Electronic)     Mechanical Iris No     Video Output Level 1Vpp/75 Ohms, composite     Image Device 1/3 inch colour CCD     Gamma 0.45     Scaning System PAL 625 lines, 25 frames/sec     White Balance ATW, 2000 DegK - 10000 Deg Kelvin     Picture Elements 752x582 Effective     Electronic Shutter Auto, 1/50-1/100000

	Protex controller for pan/tilt dome camera A controller suitable for use the Protex PXD50 motorised Pan/Tilt dome camera.
	Velocity  Paddle Switch H/L   Connector 8P terminal     Dimensions 240x180x44mm     Auto/Manual Scan Paddle Switch Auto/Manual     Pan/Tilt Joystick Up/Down/Right/Left     Power Consumption 3 Watts     Input/Output Voltage AC110V/60Hz, 220V/50Hz (option)     Weight 1.5Kgs     Power Indicator Lamp LED     Construction Steel, printed finish     Power Rocker Switch ON/OFF

Digital Time Lapse Recorder (PCI CARD) and 1/4/8/16 Camera Multiplexer

Click to enlarge

Digital HD Recording & Remote Vision Software and PCI card.

x-vision CCTV Software ~ PCI Cards for Windows 9BSE. ME. 2000 & XP
Designed to the very highest standards our x-vision CCTV Software ~ PCI Cards are ideal for use in all types of premises from a domestic premises requiring a simple to use but effective single camera system, right up to an industrial premises requiring a
state of the art 16 camera system. Available in 1,4, Sand 16 camera versions, with 15, 30 and 120 frames per second recording speeds, which
means there is a model available to suit almost every application and budget. Designed for use with Windows, x-vision is compatible with
Windows 98 (Second Edition),
ME (Millenium Edition), 2000 and XR Packed with unique features such as high quality dig ital recording, multiplexing, multi camera
playback, remote vision and playback over ISDN (Digital Telephone Lines), PSTN
(Analogue Telephone Lines), LAN (Local Area Network) or the Internet using the integrated Web server application and an ADSL
(Broadband) connection. The remote vision frame rate of up to 25 fps is ideal for applications such as
checking on properties, movement of stock, staff attendance and behaviour and checking/verifying Alarm
activations.

Our x-vision system features Digital Recording of up to 1, 4, 8 or 16 Cameras directly on to Hard Drive, simultaneous playback & recording, Remote Viewing & Webcam functions.


The x-vision system is supplied ready to use with the x-vision software and card  simply plug in the PCI card, install the software then simply turn on, plug in your cameras, set up the required features and enjoy the benefits of one of the most powerful CCTV systems in the world.

Alternatively for those wishing to use there own PC, the system is also supplied as a PCI camera interface card and software.

The x-vision system can record at a much higher frame rate and resolution than traditional Multiplexer and Time Lapse VCR combinations.

In addition to Remote Viewing functions the Webcam feature will send continuously updated images from the cameras, directly to the www via an ADSL line (click on the demo button above), these can then be viewed from any PC in the world running Netscape or Internet Explorer.
You can record up to 16 cameras independently at the same time without interruption while viewing live images of the cameras as a multi camera or individual camera view, you can even playback recordings made earlier without interrupting the current recording.

All recordings are made on to the integrated Hard Drive and each camera is recorded without interruption just as with a traditional multiplexer, and because the recordings you have made are digitally stored on to the hard drive, you can zoom in during playback, search and go to a specific time in the recording in seconds, and if you have a printer attached you can even print off an image from the recordings.

Digital storage also means that you can replay the recordings over and over again without any loss in picture quality and with a better picture quality than conventional VHS recordings.

Intelligent Motion Detection & Auto Alert Function

CLICK TO ENLARGE

CLICK TO ENLARGE

To increase the recording time and reduce wasted recordings with no movement, the x-vision system can record only when movement occurs. To reduce the chances of false alarms it is possible to specify the sensitivity of the motion detection feature.

Once movement has been detected by the system, as well as recording locally it can dial out to any phone and play a user recordable message alerting you of the fact that the computer has detected movement, or alternatively alert a pager with a text message.
View all your cameras together, or each camera individually or sequentially during live viewing and playback
If you have received notification of movement being detected or you simply want to check on your premises while you are away, you can dial in to the x-vision system from a Windows PC or Laptop from anywhere in the world and watch or record all the cameras together or each one individually.
The x-vision system can send images from the cameras connected to it directly to the www. Enabling you to view your cameras from any PC with internet access, even from a PC at an Internet Cafe (click on the Demo button above to see this in action).

When connected to a Network the MultiCam system can send images from the cameras to all the other PC’s on the Network.

Remote recording is also possible, via the www and LAN.
Additional Features

Adjustable Frame Rate for Recording / 15, 30 & 120 fps Versions

Three different frame rates are available, 15 fps (similar to a Time Lapse Video & Multiplexer), 30 fps (the standard for Digital HD systems, twice the rate of a Time Lapse Video & Multiplexer), and 120 fps (8x faster than a traditional multiplexer CCTV system), this is automatically divided amongst the active cameras, or can be set by the user for each camera, for example on a 8 camera system you could have 4 cameras with a high frame rate, and the other 4 at a low rate.

The 15 fps system is recommended for general recording in domestic and small business environments, for critical applications such as watching cashiers at checkouts, where missing a split second would allow the cashier to commit theft, or for high risk applications we recommend the 120 fps system, for all other situations that fall in between these two examples we would recommend the 30 fps system which is still twice as fast as a traditional multiplexer CCTV system.

Covert Camera Option

The Covert Camera option allows you to record cameras connected to the system without displaying them on the monitor, so anyone looking at the monitor will not be aware of any hidden (covert) cameras being recorded.

Digital water mark

To stop the digital recordings being tampered with all the recordings are dated and digitally water marked.


An integrated Composite & S-VHS output allows you to display your cameras on an SVGA monitor and/or a TV or CCTV Monitor. These outputs can also be used for connecting the system to a traditional VCR.

Timer Recording

To further increase the recording time available on your hard drive and to ensure the system is only recording when you require it to. A weekly, monthly and yearly timer can be setup quickly and easily.

Ease of Use & Security

All the features of the system are quick and easy to set up and all the setup features can be protected by a user defined password so that only authorised people will have access.

Camera Compatibility

The system is compatible with all industry standard CCTV cameras

Recording times

Recommended Minimum PC Specifications
