Wind turbine
6 metre high tower with a 300 watt wind turbine on the top.

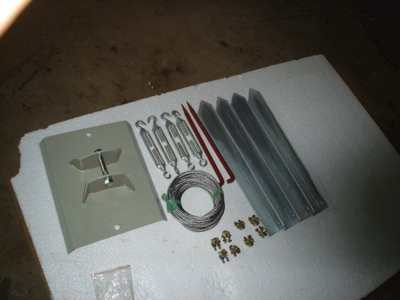

The kit is supplied with a turbine, tower guy wires, earth anchor and all
hardware to install. Included in the kit is an electronic controller and
inverter. All you need to add will be batteries (sealed lead acid)
Included with the kit is a 300 watt inverter, you can use a larger inverter
running from the battery bank.

30W
Wind Turbine kit.
|
RATED POWER
|
300W
|
|
MAX POWER
|
40W
|
|
OUTPUT DC VOLTAGE
|
24V
|
|
START WIND SPEED
|
3m/s
|
|
RATED WIND SPEED
|
8m/s
|
|
MAX WIND SPEED
|
40m/s
|
|
Cut-Out Wind Speed
|
None
|
|
Blade Pitch Control
|
None, Fixed Pitch
|
|
Overspeed Protection
|
Auto Furl
|
|
Gearbox
|
None, Direct Drive
|
|
Temperature Range
|
-40 to +60 Deg. C (-40 to +140 Deg. F)
|
|
ROTOR Diameter
|
2.70m
|
|
Rotor speed
|
400rpm
|
|
blade
|
3
|
|
Blade material
|
Reinforced fiber glass
|
|
Height of tower
|
6.0m
|
|
Generator
|
3 phase permanent magnet alternator
|
|
Sine Inverter power output
|
AC 110/220V, 50HZ/60HZ
|
|
Weight
|
125 kg
|
|
Packing for shipping
|
Three Cartons
76x43x28cm 210x30x22cm 36x27x15cm |
|
|
|
