RADIOSONDE

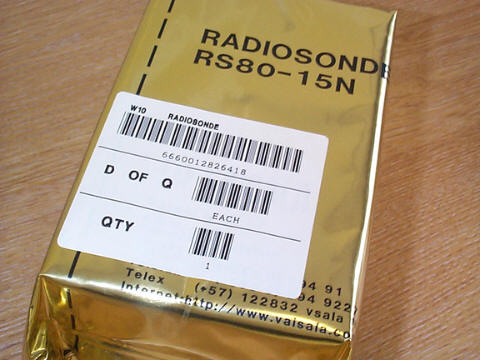

Valsala rs80-15n radiosondes at £15 uk pounds, NEW AND BOXED.

RS80 -15N Radiosondes - proven quality and accuracy

Radiosondes measure pressure, temperature and humidity when launched into the upper atmosphere on a weather balloon. Wind speed and direction is also measured by monitoring the balloon's progress from ground level to an altitude of up to 30 km. The observed data are transmitted to the ground equipment that processes the data into weather messages. Vaisala RS80 Radiosondes are used all over the world at weather stations for synoptic observations as well as in numerous defense and research programs. The RS80 offers economical observations in combination with high performance and an accuracy well-proven in international comparisons.  Being small, lightweight and easy to use, an RS80 Radiosonde can be easily launched by one operator which minimises sounding costs. The RS80 is also AUTOSONDE-compatible for fully automated upper air observations.

RS80-15N Technical Specifications

General specifications
Dimensions excl. antenna:	55 mm by 147 mm by 90 mm
Weight, battery activated:	approximately 220 g
Battery	water -activated
Voltage	19 V
Transmitter frequencies	403 MHz
Windfinding alternatives	none
Meteorological sensors
PTU sensors are individually factory calibrated.
Pressure	BAROCAP® Capacitive aneroid
Measuring range	1060 hPa to 3hPa (mb)
Resolution	0.1 hPa
Accuracy
Reproducibility1):	0.5 hPa
Repeatability of calibration2):	0.5 hPa
Temperature	THERMOCAP® Capacitive bead
Measuring range	+60 °C to - 90 °C
Resolution	0.1 °C
Accuracy:
Reproducibility1):	0.2 °C up to 50 hPa, 0.3 °C for 50-15 hPa, 0.4°C above 15 hPa level
Repeatability of calibration2):	0.2 °C
Lag:	< 2.5 s (6 m/s flow at 1000 hPa)
Humidity	HUMICAP® Thin film capacitor
Measuring range:	0 to 100 % RH
Resolution:	1 % RH
Lag:	1 s (6 m/s flow at 1000 hPa, +20 °C)
Accuracy:
Reproducibility1):	<3 %RH
Repeatability of calibration2):	2 %RH
