NIGHT VISION SCOPES

Gone are the days When Night vision devices were only within the reach of the military, security services and the very wealthy. Now that Night Vision technology has been exploited for consumer use, a range of very affordable units are now available. Night vision devices, through the use of opto-electronic technology allow observation in low light conditions by the amplification of ambient light provided by the moon and stars, or faint artificial lighting. The user sees a magnified and intensified image of objects undetectable to the naked eye. Night Vision scopes are typically used for nocturnal wildlife observation, hunting, fishing, shipping and navigation, farming, home security, search and rescue, tourism and police applications. We have great pleasure to offer three high quality units to welcome you to the miraculous World of Night vision.

Accessories

80mm f1.7 lens

Replaces the standard 26mm f1.7 lens on the Nimbus converting it to a 3.6x magnification hand held monocular

80mm f1.7 lens

Replaces the standard 26mm f1.4 lenses on the Storm and Whirlwind converting them to 3.6 magnification hand held binoculars

NVMT digital camera adaptor Offers a simple effective way of attaching a compact digital camera to the Yukon NVMT night vision monocular.  With generous front/back, left/right and up/down adjustments, the unit allows easy positioning of a digital camera lens up to the eyepiece of the Yukon NVMT. The Digital Camera Adaptor attaches via the tripod threads ion the base of the night vision monocular. The unit can be attached to a tripod for maximum stability.

100mm f1.5 lens

Replaces the standard 37mm f1.0 lens on the tracker and pioneer converting them to 2.7x or 3.8x magnification monocular respectively.

A combined kit of the 29011Tabletop Tripod and adaptor to convert it into a Car Window Mount. Supplied complete with an arm support strap that can be used in conjunction with the tripod to give extra support when used with high magnification scopes and binoculars. Supplied with a pouch case. Max. acceptable weight of a mounted device: 1kg Tripod thread diameter: 1/4" Whitworth Standard height: 280mm Extended height: 420mm

A lightweight, full height tripod that will accept all scopes up to the 100X. Features include a 3-way fluid effect pan head, 1/4" Whitworth quick release plate with metal video spring pin, 3-section legs with quick release locks, elevator crank and tension control for the centre column, a large pan handle, lockable centre brace and built-in spirit level. A lightweight, full height tripod that will accept all scopes up to the 100X. Features include a 3-way fluid effect pan head, 1/4" Whitworth quick release plate with metal video spring pin, 3-section legs with quick release locks, elevator crank and tension control for the centre column, a large pan handle, lockable centre brace and built-in spirit level. 65X105X90mm 700g Minimum Height: 60.5cm Maximum Height: 164cm

Cobra Night Vision Binoculars Cobra Night Vision Equipment Meteor Binoculars Type Gen Weight Size Lens Mag Binocular 1 1.1kg 200x164x68mm 80mm f1.6 3.6x Angle of View IR Illuminator Batteries Stock Range - (m)   15° Built In 1xCR123A In stock 3 - 140     Cobra Night Vision 1027 Nebula Pro   Type Gen Weight Size Lens Mag Binocular 1 .7kg 158x113x58mm 50mm f1.5 2.3x Angle of View IR Illuminator Batteries Stock Range - (m)   18° Built In 2xLR1 In stock .3-90m       Cobra Storm Pro Night Vision Goggles Type Gen Weight Size Lens Mag Goggle 1 .82kg 137x113x58mm 26mm f1.4 1.0x Angle of View IR Illuminator Batteries Stock Range - (m)   40° Built In 2xLR1/MN9100 In stock 0.2 - 3.0     Optional 2x80mm lens F1.7 that will increase the magnification to 3.6x   Cobra 1303 Whirl Wind  Night Vision Goggles Type Gen Weight Size Lens Mag Goggle 1 .93kg 125x150x83mm 26mm f1.4 1.0x Angle of View IR Illuminator Batteries Stock Range - (m)   40° Built in 2xLR1/MN9100 In stock 0.2 - 3.0     Optional 2x80mm lens F1.7 that will increase the magnification to 3.7   Cobra 2301 Tornado 2nd gen  Night Vision Goggles   Type Gen Weight Size Lens Mag Goggle 2 .7kg 172x148x80mm 26mm f1.1 1.0x Angle of View IR Illuminator Batteries Stock Range - (m)   40° Built in 2xLR1/MN9100 In stock 1-150     Optional 100mm F1.5 lens, gives 3.9x magnification Optional 165mm F2 lens, gives 6.3x magnification     Cobra 2301 Vortex  gen 2 plus  Night Vision Goggles Type Gen Weight Size Lens Mag Goggle 2+ .68kg 161x152x76mm 35mm f1.2 1.0x Angle of View IR Illuminator Batteries Stock Range - (m)   40° Built in 2xLR1/MN9100 In stock 1-150     RANGER 2201 2ND GENERATION NIGHT VISION A compact and lightweight, all metal bodyshell Gen 2 biocular fitted with a panoramic eyepiece. The Ranger utilises a Gen 2 tube with a 25mm MCP. Fitted with a high quality internally-focused 100mm f1.5 lens, it offers 3.1x magnification and a 10° field of view. Power is provided by 2 x 1.5V Alkaline AA/MN1500 batteries (not supplied). The powerful built-in 75mW Infrared Illuminator has 3 power settings and a variable beam with power being supplied by the scopes batteries. Features include automatic brightness control, a built-in manual gain control and Bright Point Protection. A tripod socket is built in to the right side of the body just forward of the hand strap. An optional monocular eyepiece (with SLR/Video camera adaptor) boosts magnification to 4.4x. One Year Warranty  Case included  Magnification: 3.1x Generation: 2 Objective size (mm): 100 / f1.5 Field of view : 10° Range (m): 5.0 - 450 Batteries: 2 x AA/MN1500 Weight (kg): 1.1 Size (mm): 295 x 105 x 85 Supplied with pouch case     Cobra 75mw and 150mw  IR Illuminators A high power IR illuminator with 75mw or 150mw  IR diode designed to attach to the Tracker, Tracker 100, Pioneer, Pioneer 100, Sabre and Scimitar. Can also be hand held. 805nm output, variable beam and 3 power settings. Cobra Optics Night Vision Monoculars Latest addition to the range is the Atlantis 1113 monocular, waterproof....and it floats!! Ideal for marine use or outdoor work in extreme conditions. First gen tube, 50mm f1.2 lens, 2.0x magnification, 1-110m range, IR illuminator, .65kg, 18 deg field of view, 1xCR123A battery and cas included, 175x50x90mm YUKON Night vision monocular MT2   Type Gen Weight Size Lens Mag Monocular 1 .5kg 162x60x82mm 70mm f1.5 3x Angle of View IR Illuminator Batteries Stock Range - (m)   20° Built in 100m CR123 In Stock 5 - 200   Cobra Optics Ghost Night Vision Monocular Type Gen Weight Size Lens Mag Monocular 1 .42kg 150x50x 76mm 50mmf1.5 2.4x Angle of View IR Illuminator Batteries Stock Range - (m)   15° Detachable - In Stock 1.3 - 76   Cobra Optics Lightning Night Vision Monocular Type Gen Weight Size Lens Mag Monocular 2 .38kg 150x50x 76mm 26mmf1.1 64mmf1.2 100mmf1.5 165mmf2.0 1.0x 2.5x 3.9x 6.3x Angle of View IR Illuminator Batteries Stock Range - (m)   15° Detachable 2xAA In Stock 1.3 - 76     Cobra Optics Type Gen Weight Size Lens Mag Monocular 1 .42kg 150x50x76mm 50mm f1.5 2.4x Angle of View IR Illuminator Batteries Stock Range - (m)   15° Built In 2 x AAA In Stock 1.3 - 76   Cobra Optics Type Gen Weight Size Lens Mag Monocular 1 .48kg 165x97x66mm 50mm f2.0 2.0x Angle of View IR Illuminator Batteries Stock Range - (m)   17° Built In 2 x AA In Stock 0.33 - 90   Cobra Optics Type Gen Weight Size Lens Mag Monocular 1 .68kg 191x97x66mm 85mm f1.6 3.6x Angle of View IR Illuminator Batteries Stock Range - (m)   12° Built In 2 x AA In Stock 3.3 - 105   Cobra Night Vision Equipment GRIFFON Monocular Type Gen Weight Size Lens Mag Monocular 1 .69kg 218x70x70mm 90mm f1.7 3.0x Angle of View IR Illuminator Batteries Stock Range - (m)   10° Built in 1 x CR123A In Stock 3 - 135     Cobra Optics Tracker Super Gen 1+ Night Vision Monocular Type Gen Weight Size Lens Mag Monocular 1+ .43kg 122x58x58mm 37mm f1 1x Angle of View IR Illuminator Batteries Stock Range - (m)   28° Optional 75mw 1xCR123A In Stock 2 - 250     Cobra Optics Tracker 100 Super Gen 1+ Night Vision Monocular Type Gen Weight Size Lens Mag Monocular 1+ .59kg 214x58x58mm 37mm f1 2.7x Angle of View IR Illuminator Batteries Stock Range - (m)   10° Optional 75mw 1xCR123A In Stock 2 - 250   Cobra 75mw IR Illuminator A high power IR illuminator with 75mw IR diode designed to attach to the Tracker, Tracker 100, Pioneer, Pioneer 100, Sabre and Scimitar. Can also be hand held. 805nm output, variable beam and 3 power settings.     Cobra Night Vision Equipment Ghost Monocular Type Gen Weight Size Lens Mag Monocular 1 .42kg 150x50x76mm 50mm f1.5 2.4x Angle of View IR Illuminator Batteries Stock Range - (m)   15° Detachable -none In Stock 1.3 - 76     Cobra Night Vision Goggles Cobra Night Vision Equipment Nimbus Monocular Type Gen Weight Size Lens Mag Goggle 1 .68kg 127x65x49mm 26mm f1.4 1.0x- 3.6x (see below) Angle of View IR Illuminator Batteries Stock Range - (m)   40° Built In 2xLR1/MN9100 To order 0.2 - 3.0   An optional lens is available (80mm f1.7) which will increase the magnification to 3.6X  Cobra Storm Night Vision Goggles Type Gen Weight Size Lens Mag Goggle 1 .82kg 137x113x58mm 26mm f1.4 1.0x-3.6x (see below) Angle of View IR Illuminator Batteries Stock Range - (m)   40° Built In 2xLR1/MN9100 To order 0.2 - 3.0   Optional lens available are a pair of 80mm lenses, increase magnification to 3.6x Cobra 1303 Whirl Wind  Night Vision Goggles Type Gen Weight Size Lens Mag Goggle 1 .93kg 125x150x83mm 26mm f1.4 1.0x Angle of View IR Illuminator Batteries Stock Range - (m)   40° Built in 2xLR1/MN9100 In stock 0.2 - 3.0     Optional 2x80mm lens F1.7 that will increase the magnification to 3.7 Cobra 2301 Tornado 2nd gen  Night Vision Goggles   Type Gen Weight Size Lens Mag Goggle 2 .7kg 172x148x80mm 26mm f1.1 1.0x Angle of View IR Illuminator Batteries Stock Range - (m)   40° Built in 2xLR1/MN9100 In stock 1-150     Optional 100mm F1.5 lens, gives 3.9x magnification   Optional 165mm F2 lens, gives 6.3x magnification Cobra 2301 Vortex  gen 2 plus  Night Vision Goggles Type Gen Weight Size Lens Mag Goggle 2+ .68kg 161x152x76mm 35mm f1.2 1.0x Angle of View IR Illuminator Batteries Stock Range - (m)   40° Built in 2xLR1/MN9100 In stock 1-150       Cobra Night Vision Equipment Type Gen Weight Size Lens Mag Monocular 1 .69kg 218x70x70mm 90mm f1.7 3.0x Angle of View IR Illuminator Batteries Stock Range - (m)   10° Built in 1 x CR123A In Stock 3 - 135

	Type	Gen	Weight	Size	Lens	Mag
	Binocular	1	1.1kg	200x164x68mm	80mm f1.6	3.6x
	Angle of View	IR Illuminator	Batteries	Stock	Range - (m)
	15°	Built In	1xCR123A	In Stock	3 - 140

Cobra Night Vision Equipment Nimbus Monocular

	Type	Gen	Weight	Size	Lens	Mag
	Goggle	1	.68kg	127x65x49mm	26mm f1.4	1.0x
	Angle of View	IR Illuminator	Batteries	Stock	Range - (m)
	40°	Built In	2xLR1/MN9100	In Stock	0.2 - 3.0

	Type	Gen	Weight	Size	Lens	Mag
	Monocular	1	1.1kg	208x85x65mm	50mm f1.2	2.0x
	Angle of View	IR Illuminator	Batteries	Stock	Range - (m)
	14°	Built in	1 x CR123A	In Stock	5 - 122

2202 RANGER 165  2ND GENERATION NIGHT VISION SYSTEM

Based on the 2201 Ranger™, the Ranger 165™ is fitted with a high quality 165mm f2.0 lens offering 5.1x magnification and a field of view of 7°. The Ranger 165™ utilises a Gen 2 tube with a 25mm MCP. Power is provided by 2 x 1.5V Alkaline AA/MN1500 batteries (not supplied). The powerful built-in 75mW Infrared Illuminator has 3 power settings and a variable beam with power being supplied by the scopes batteries. Features include automatic brightness control, a built-in manual gain control and Bright Point Protection. A tripod socket is built in to the right side of the body just forward of the hand strap. An optional monocular eyepiece (with camera adaptor) boosts magnification to 7.3x.
One Year Warranty  Case included

• Magnification: 5.1x

• Generation: 2

• Objective size (mm): 165 / f2

• Field of view : 7°

• Range (m): 10 - 550

• Batteries: 2 x AA/MN1500

• Weight (kg): 1.2

• Size (mm): 310 x 115 x 60

• Supplied with pouch case

	Type	Gen	Weight	Size	Lens	Mag
	Goggle	2	.7kg	172x148x80mm	26mm f1.1	1.0x-6.3x (see below)
	Angle of View	IR Illuminator	Batteries	Stock	Range - (m)
	40°	Built in	2xLR1/MN9100	In stock	1-150

Optional 100mm F1.5 lens, gives 3.9x magnification

Optional 165mm F2 lens, gives 6.3x magnification

PIONEER 2ND GENERATION NIGHT VISION MONOCULAR

• Edge to edge definition

• High light amplification

• Compact and light weight

• Long eye relef-30mm

• 37mm f1.0 lens

• 1.4x magnification

• FOV 28 deg

• Automatic brightness control

• Built in tripod socket

• Supplied complete with SLR/ video camera adaptor

• Max viewing range 600m (2,000')

• Optional IR illuminator

• 1xCR1 or 2xLR44 batteries

The Pioneer is also available with a 100mm f1.5 lens which gives a magnification of 3.8x and a FOV of 10 deg. Slightly bigger body at 214x72x72mm

Cobra 75mw and 150mw IR Illuminator

A high power IR illuminator with 75mw or 150mw  IR diode designed to attach to the Tracker, Tracker 100, Pioneer, Pioneer 100, Sabre and Scimitar. Can also be hand held. 805nm output, variable beam and 3 power settings.

	Type	Gen	Weight	Size	Lens	Mag
	Goggle	1	.82kg	137x113x58mm	26mm f1.4	1.0x
	Angle of View	IR Illuminator	Batteries	Stock	Range - (m)
	40°	Built In	2xLR1/MN9100	In Stock	0.2 - 3.0

	Type	Gen	Weight	Size	Lens	Mag
	Monocular	1	.68kg	191x97x66mm	85mm f1.6	3.6x
	Angle of View	IR Illuminator	Batteries	Stock	Range - (m)
	12°	Built In	2 x AA	In Stock	3.3 - 105

	Type	Gen	Weight	Size	Lens	Mag
	Monocular	1	.48kg	165x97x66mm	50mm f2.0	2.0x
	Angle of View	IR Illuminator	Batteries	Stock	Range - (m)
	17°	Built In	2 x AA	In Stock	0.33 - 90

cobra optics night vision weapon sights

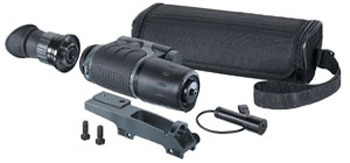

Yukon night vision monocular NV MT rifle kit, complete night vision rifle sight with trigger operated laser beam

NVMT Riflescope Kit -- is a device that can be used as a night vision monocular or a riflescope. A dot of a laser pointer is used as an aiming reticule of the device. With the laser pointer installed on the night vision or the rifle can be used independently during the day.
Night vision monocular has high illuminative and high magnification power. With rifle eyepiece and rifle mount in place, the device can be used as a night vision riflescope. The kit allows NVMT to be used in many situations and for a range of purposes.

Rapier super gen1+ night vision weapon sight

• Ultra clear image
• Generation 1 plus (Gen 1+)
• 1.7X magnification (3.4 with optional 2x converter)
• Internal front lens and rear eyepiece focusing
• Flip cap
• Shock resistant to large calibres (up to 6500J)
• External windage and elevation controls
• Powerful built in IR illuminator
• Weatherproof
• Adapted weaver mount (down to 9.5mm)
• Max relative viewing range approx 300m (1000')
• 3 bar reticule

night vision weapon sights

Sabre Gen 1 night vision weapon sight

• Illuminated reticle with brightness control
• First generation technology
• 3.0x magnification
• Front lens and rear eyepiecs focusing
• LED on and IR on indicators
• Built in windage and elevation controls
• Weaterproof
• Built in IR illuminator, 2 settings
• Adapted 63B (US) mount (9.5-11.5mm rails)
• Max relative viewing range approx 150m (500')

night vision weapon sights

Scimitar gen 2 day or night weapon sight

• 2nd generation night sight
• Crosshair reticle
• Optional 75mw illuminator
• 100mm F1.5 66mm element lens
• Internal windage and elevation
• Detachable eyepiece for day/night use
• Mount extra

Night Vision Multi Task NV MT1 WP

Yukon NV MT1 WP is proud to introduce the newest addition to our premium night vision line. The NV MT1 WP embraces the most modern, cutting edge technology available without forgetting practicality. A key component to the originality of the new NV MT1 WP is that it sheds the burden of a one-dimensional item and evolves into a multi-functional system allowing the scope to be used virtually anywhere. Whether you choose to take advantage of the optional waterproof version or stay with our standard variety; you will be simply amazed by the ease of use and quality of image provided by this compact unit. The NV MT1 WP is equipped with two 1/4 inch mounts thus it can be utilized for a head mount as well as a riflescope. As an option, the NV MT1 WP can also be coupled with an exclusive rifle mount/laser system elevating the NV MT1 WP right to the top of the newest generation of compact night vision riflescopes.

The NV MT's newly developed lenses have improved wavelength / contrast characteristics which help to utilize every bit of light ampflification from the night vision tube.

This unique design allows the scope to produce a clear image with quality and high resolution. The NV MT1 WP was primarily designed to produce a quality image. The unit design has also considered both comfort and ease of use.

The NV MT1 WP is equipped with comfortable sensor control buttons coupled with an ergonomically designed body and innovative lens cover. Rugged rubber armor protects the NV MT from destructive moisture and other elements.

Our Exclusive PULS^TM system provides the highest level of infrared illumination without the significant power drain on the battery. The PLUS^TM system allows the maximum possible output by the I.R. Illuminator doide, yet letting it rest between the impulses to protect the IR from burning out. The pulsing frequency is invisible to a human eye but it penetrates longer distances due the quick energy bursts of the IR.

• Interchangeable lenses
• Rifle moutable
• Variety or applications
• High grade NV tubes
• I.R. illuminator
• Waterproof ^*
• Photo-video adapter
• Compact
• Lightweight
• Rubber armored
• Padded corduroy carrying case

^* Optional waterproof version provides complete damage protection from water. Waterproof unit is 100% effective and operational under water at depths up to 3 feet for a 24-hour period.

Characteristics	Value
Model #	20040WP
Generation	1
Visual magnification, x	2
Vertical Resolution, lines/mm	36
Objective Lens, mm	24
Angular Field of View, Grad	30
Vieing Range, m	200
Built in I.R.Illuminator, yd./m	100/100
Tripod mount, inch	1/4
Lenght, inch/mm	5.6 / 142
Width,inch/mm	3.2 / 82
Height,inch/mm	2.4 / 60
Weight,oz/kg	13.4 / 0.38

Helios-01

Helios Night Vision Scopes Helios-01 Helios-01 Compact Night Vision Scope (with infra-red illuminator) A superb, ergonomically designed hand held unit utilising the latest in GEN-1 Night Vision technology. Features built in infra red illumination allowing use in near or total darkness. Extremely robust in construction with a solid metal body designed to withstand shocks and protect the unit from water, dirt etc. Extremely easy to use, the unit is well balanced and fits snugly into the palm of your hand. The unit and independent infra red illuminator are operated via convenient thumb switches located near the eyepiece. A range of apertures on the lens allows you to adjust the brightness of illumination. Supplied in padded carrying case with shoulder strap. Specifications: Range of Visibility up to 250m Range of Visibility in full darkness with IR Illuminator up to 100m Object lens diameter 58mm Magnification 1.8x Field of View 20degrees Focussing range 0.5m-INF Supplied with black, night simulation filter Batteries required 2 x 1.5V (TYPE AA) Dimensions 190x90x75mm Weight 915g Product Code: 185 Helios-02 Helios Night Vision Scopes Helios-02 Compact Night Vision Scope (with infra-red illuminator) A superb, ergonomically designed hand held unit utilising the latest in GEN-1 Night Vision technology. Features built in infra red illumination allowing use in near or total darkness. Extremely robust in construction with a solid metal body designed to withstand shocks and protect the unit from water, dirt etc. Extremely easy to use, the unit is well balanced and fits snugly into the palm of your hand. The unit and independent infra red illuminator are operated via convenient thumb switches located near the eyepiece. A range of apertures on the lens allows you to adjust the brightness of illumination. Supplied in padded carrying case with shoulder strap. Helios-02 Compact Night Vision Scope (with infra-red illuminator) Product Code: 357
