HELIOS OBSERVATION BORDER GUARD BINOCULARS

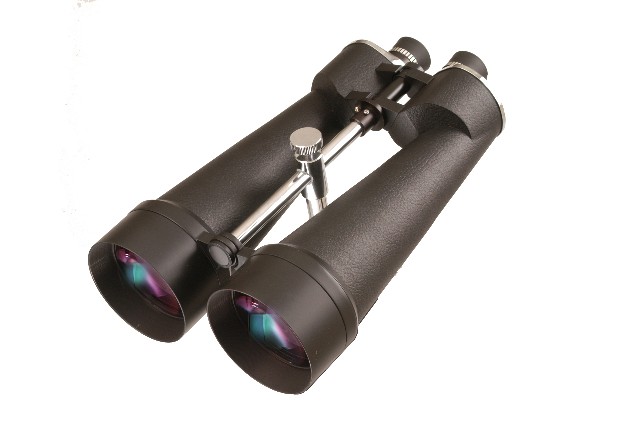

QUANTUM 3 SERIES OBSERVATION BINOCULARS
High quality waterproof observation binoculars, with individual eyepiece focussing, designed for long-range terrestrial and astronomical observations. Incorporating BAK-4 prisms and a fully broadband multi-coated optical system. Features a central stabilising bar with sliding tripod adaptor, for optimum balancing on tripod. Finished in Leatherette and supplied in foam-lined Aluminium storage/carrying case.
Model Quantum-3
Specification 20x80 25x100
Magnification 20x 25x
Object Lens Diameter 80mm 100mm
Exit Pupil Diameter 4mm 4mm
Field of View 2.99° 2.99°
Nearest Focus Distance 12m 17m
Weight 2.4kgs 4.7kgs
Product Code 811 812

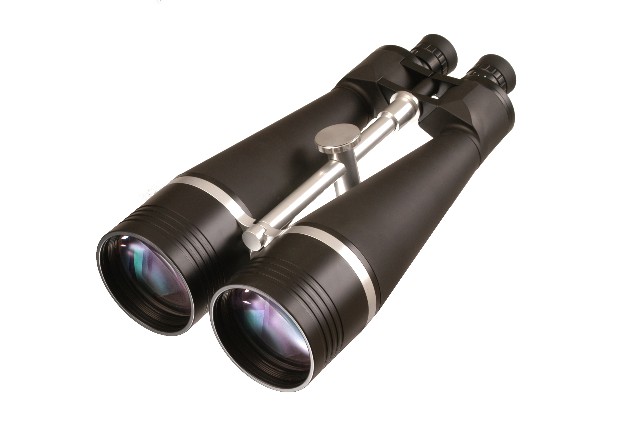

QUANTUM 4 SERIES OBSERVATION BINOCULARS
High quality waterproof observation binoculars, with individual eyepiece focusing, designed for long-range terrestrial and astronomical observations. Incorporating BAK-4 prisms and a fully broadband multi-coated optical system. Features a central stabilising bar with sliding tripod adaptor, for optimum balancing on tripod.
Black Rubber and supplied in foam-lined Aluminium storage/carrying case.
Model Quantum-4
Specification 20x90 25x100
Magnification 20x 25x
Object Lens Diameter 80mm 100mm
Exit Pupil Diameter 4.5mm 4mm
Field of View 3.22° 2.53°
Nearest Focus Distance 30m 30m
Weight 3.7kgs 4.6kgs
Product Code 809 810
.........................................................................................................................................

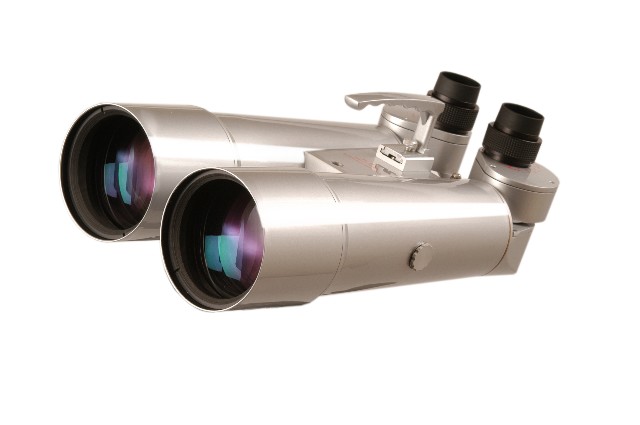

QUANTUM 5 20/40x100 OBSERVATION BINOCULAR
(45° Angled Viewing)
Top-quality waterproof observation binocular with individual eyepiece focussing, designed for long-range terrestrial and astronomical observations. Incorporating oversized BAK-4 prisms and a fully broadband multi-coated optical system. Top quality triplet objective lenses. Supplied with two pairs of eyepieces. Eyepieces are angled at 45°, offering excellent versatility for both terrestrial and astronomical viewing. Features carrying handle, built-in lens hoods and trpod adaptor. High quality precision all-metal construction. Supplied in foam-lined Aluminium
Model Quantum-5
Specification 20/40x100
Magnification 20x & 40x
Object Lens Diameter 100mm
Exit Pupil Diameter 5mm-2.5mm
Field of View 2.53°-1.5°
Nearest Focus Distance 20m
Weight 7kg
Product Code 833
..........................................................................................................................................

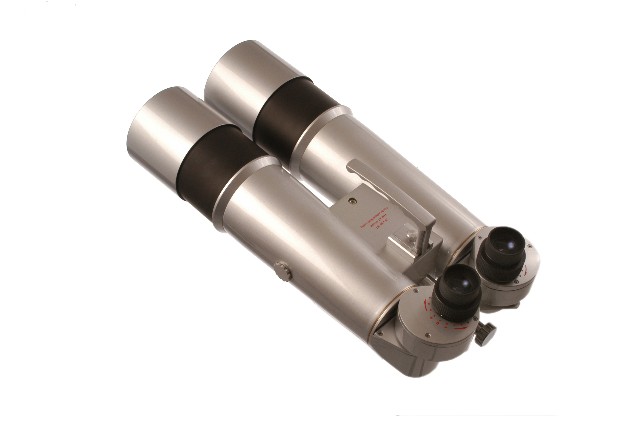

QUANTUM 6 20/26/32x88 OBSERVATION BINOCULAR
(90° Angled Viewing)
Top-quality waterproof observation binocular with individual eyepiece focussing, designed for long-range terrestrial and astronomical observations. Incorporating oversized BAK-4 prisms and a fully broadband multi-coated optical system. The top quality triplet objective lens delivers superb,
semi-apochromatic optical performance. Supplied with three pairs of 1.25” eyepieces. Eyepieces are angled at 90° making them ideal for high-angle astronomical viewing. Features carrying handle, built-in lens hoods and tripod adaptor. High quality precision all-metal construction. Supplied
Model Quantum-6
Specification 20/26/32x88
Magnification 20x/26x/32x
Object Lens Diameter 88mm (Semi-Apo Triplet)
Exit Pupil Diameter 4.4mm-2.75mm
Field of View 2.01°- 2.29°
Nearest Focus Distance 25m
Weight 6.5kg
Product Code 824

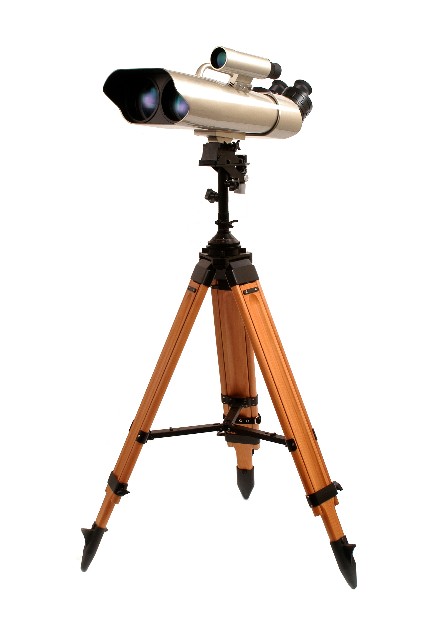

QUANTUM-7 SERIES 25x100 OBSERVATION BINOCULAR
(45° Angled Viewing)
Top-quality observation binocular with individual eyepiece focussing, designed for long-range terrestrial and astronomical observations. Incorporating oversized BAK-4 prisms and a fully broadband multi-coated optical system. Top quality triplet objective lenses provide
semi-apochromatic optical performance. Eyepieces are angled at 45°, offering excellent versatility for both terrestrial and astronomical viewing. Features built-in lens hoods, finderscope shoe and carrying handle. High quality precision all-metal construction. Supplied with heavy-duty hardwood tripod.
Model Quantum-7.1
Specification 25x100
Magnification 25x (40x optional)
Object Lens Diameter 100mm (Semi-Apo Triplet)
Exit Pupil Diameter 4mm
Field of View 2.53°
Nearest Focus Distance 30m
Weight 13.8kg (Bino) + 6.2kg (Tripod)
Product Code 825
Optional Accessories:
Pair of 40x Eyepieces
Product Code 845
7x50 Finderscope
Product Code 846

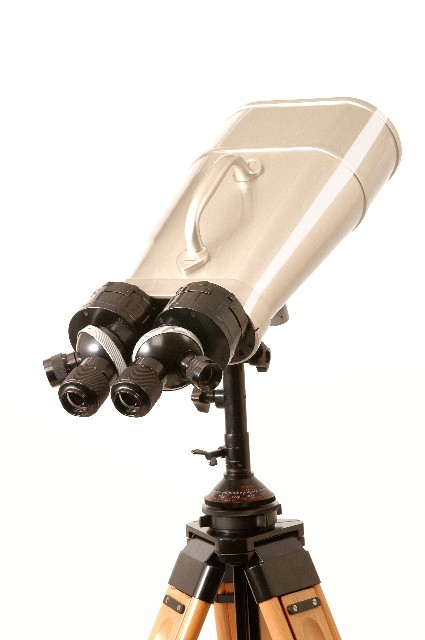

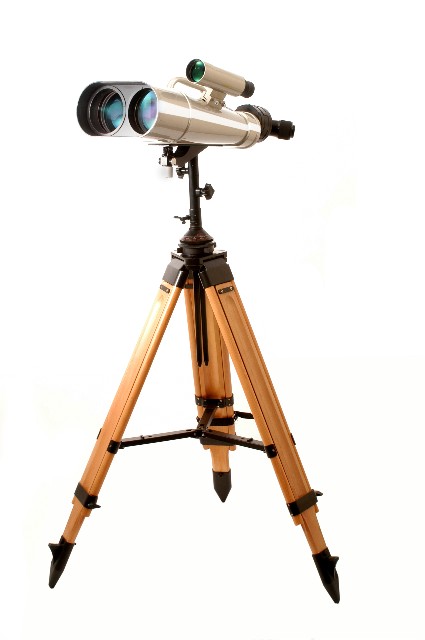

QUANTUM-7 SERIES
25/40x100 OBSERVATION BINOCULAR
(Twin Eyepiece/Straight Viewing)
Top-quality observation binocular with individual eyepiece focussing, designed for long-range terrestrial and astronomical observations. Incorporating oversized BAK-4 prisms and a fully broadband multi-coated optical system. Top quality triplet objective lenses provide semi-apochromatic optical performance. Features two eyepieces of 25x and 40x magnifications, on a rotatable mount, for ultra-quick and convenient magnification changes. Features built-in lens hoods, finderscope shoe and carrying handle. High quality precision all-metal construction. Supplied with heavy-duty hardwood tripod and integral steel tabletop tripod. Binocular supplied in foam-
Model Quantum-7.2
Specification 25/40x100
Magnification 25x & 40x
Object Lens Diameter 100mm (Semi-Apo Triplet)
Exit Pupil Diameter 4mm-2.5mm
Field of View 2.53°/1.5°
Nearest Focus Distance 30m/60m
Weight 13kg (Bino) + 7.1kg (Tripod)
Product Code 826
Optional Accessory
7x50 Finderscope Product Code 846

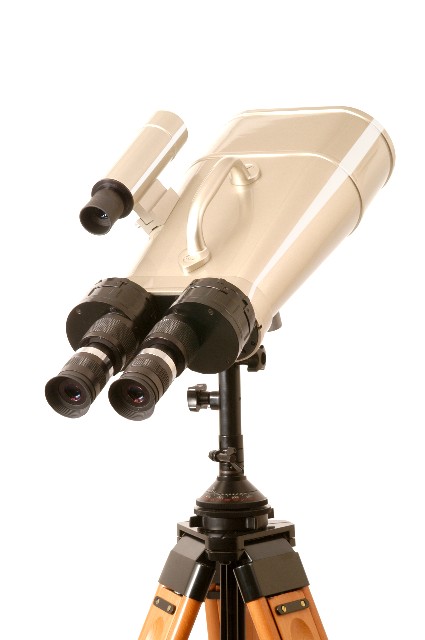

QUANTUM-7 SERIES
25/62x100 OBSERVATION BINOCULAR
(Interchangeable Eyepieces/Straight Viewing)
Top-quality observation binocular with individual focussing. Features Helical focussing without eyepiece rotation! Designed for long-range terrestrial and astronomical observations. Incorporating oversized BAK-4 prisms and a fully broadband multi-coated optical system. Designed for long-range terrestrial and astronomical observations. Top quality triplet objective lenses provide
semi-apochromatic optical performance. Supplied with pairs of 25x (f24.5mm) and 62x (f10mm) interchangeable eyepieces, but can be used with any standard 1.25” astronomical eyepiece, making this instrument highly versatile for astronomical use. Features built-in lens hoods, finderscope shoe, 7X50 Finderscope and carrying handle. High quality precision all-metal construction. Supplied with heavy-duty hardwood tripod and integral steel tabletop tripod. Binocular supplied in foam-lined
Model Quantum-7.3
Specification 25/62x100
Magnification 25x & 62x
Object Lens Diameter 100mm (Semi-Apo triplet)
Exit Pupil Diameter 4mm-1.61mm
Field of View 2.53°/1.15°
Nearest Focus Distance 30m/60m
Weight 14kg (Bino) + 7.1kg (Tripod)
Product Code 834
..........................................................................................................................................
HELIOS
FINE BRASS TRADITIONAL SOLID BRASS TELESCOPES
Ideal to grace the balcony, library, conservatory or drawing room of a fine house. These beautifully crafted, hand-polished, solid brass telescopes have been manufactured to reflect the workmanship and materials of a more elegant bygone age.
The magnificent, highly polished brass, is complimented by tripods made from finest quality mahogany wood. All feature high quality fully coated optics making them highly functional products. All models provide erect images, so can be used for terrestrial viewing as well as for basic astronomical observations.

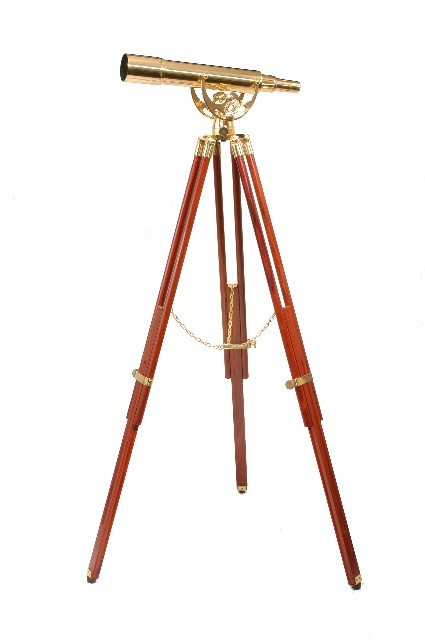

FINE BRASS 2060
- Objective Lens Diameter: 60mm
- Magnification 20x-60x Zoom
- Twist-Focus/Zoom controls
- Brass Alt-Azimuth Arc Mount
- Brass Chain Leg-Brace
- Mahogany Tripod (Medium duty)
Product Code 829

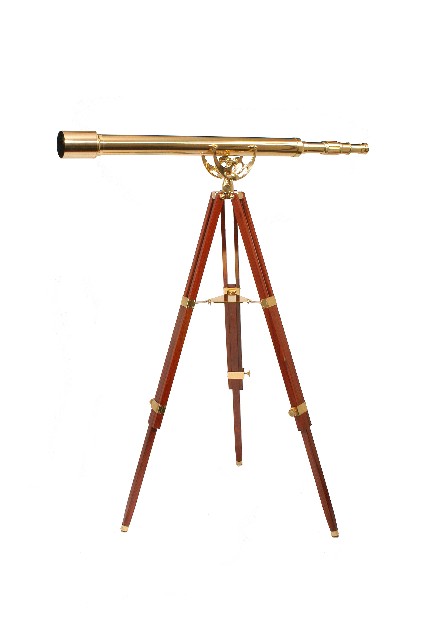

FINE BRASS 6040
- Objective Lens Diameter: 60mm
- 40” Long Telescope Tube
- Magnification 28x
- Twist-Focus Control
- Brass Alt-Azimuth Arc Mount
- Brass leg brace
- Mahogany Tripod (Medium-Duty)
Product Code 830
FINE BRASS 8040
- Objective Lens Diameter: 80mm
- 40” Long Telescope Tube
- Magnification 28x
- Twist-Focus Control
- Red Copper Alt-Azimuth Arc Mount and Focusser
- Brass leg brace
- Mahogany Tripod (Heavy-duty)
Product Code 832
FINE BRASS 60700
- Objective Lens Diameter: 60mm
- Telescope Focal Length: 700mm
- Supplied with 25mm Plossl Eyepiece (1.25”)
- Magnification 28x
- Brass Alt-Azimuth Arc Mount
- Rack & Pinion Focussing
- 6x30 Finderscope
- 45° Erecting Prism
- Brass Accessory Tray / Leg Brace
- Mahogany Tripod (Heavy-Duty)
Product Code 847
FINE BRASS 80900
- Objective Lens Diameter: 80mm
- Telescope Focal Length: 900mm
- Supplied with 25mm Plossl Eyepiece (1.25”)
- Magnification 36x
- Brass Alt-Azimuth Alt-Azimuth Arc Mount
- Rack & Pinion Focusing
- 6x30 Finderscope
- 45° Erecting Prism
- Brass Accessory Tray / Leg Brace
- Mahogany Tripod (Heavy-Duty)
Product Code 848
|
